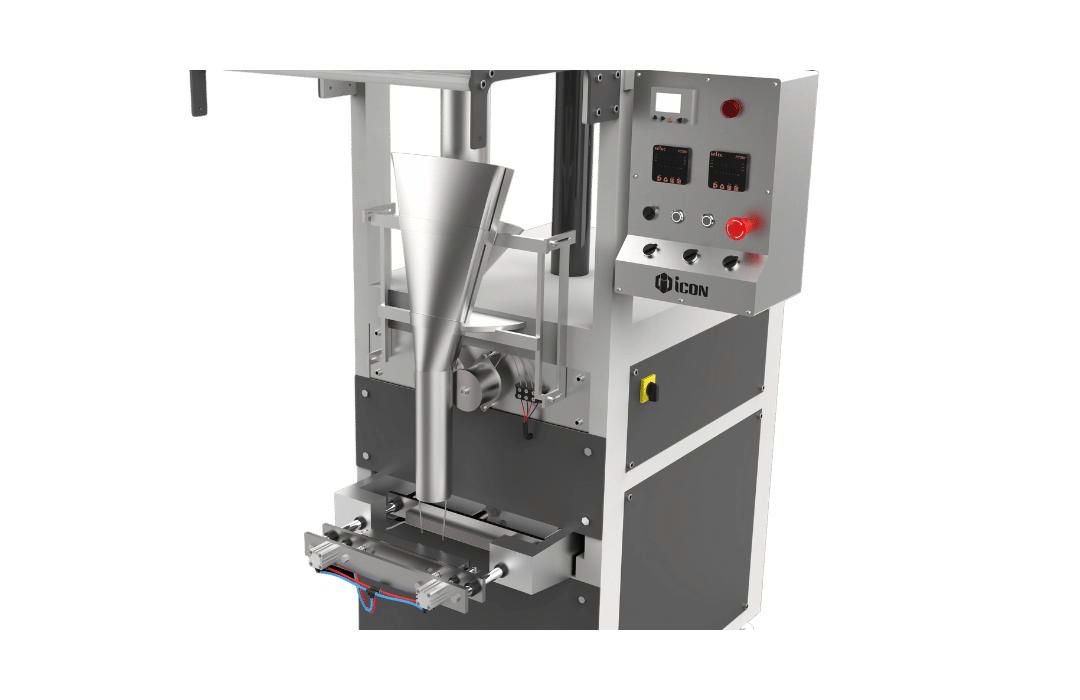

Auger Filler VFFS Prime
Hygienic & Safe Design
International Standards
Pneumatic Operations
Limited Weight Variants
Secured Sealing
Consistent Weighing
Types of packages
Products that can be packed
.png)
.png)
Technical Specification
Production Capacity |
||
|---|---|---|
| Cycle per Min. |
20 to 25 Pouch / Min. (Depending on Product Type) |
|
| Pouch Volume Capacity |
5 gm to 500 gm (Depends on Auger Size and Screw Configuration) |
|
| Error in Weight |
± 0.5 to ± 2 Gram of The Target Weight or Volume |
|
| Product Type | Food, Pharmaceuticals, Powders, Chemicals, Cosmetics, Spices, Coffee, Etc. | |
Machine Specification |
||
| Hopper Capacity |
60 Ltr. (Depending on Product and Desired Volume) |
|
| Auger Screw Type |
Helical or Spiral Auger for Smooth and Controlled Product Dispensing |
|
|
Filling System |
Auger Screw for Powdery or Granular Product Filling (Adjustable for Product Flow and Density) |
|
| Sealing Type |
Center Seal / Side Seal |
|
| Packing Material |
Laminated Heat Sealable Film |
|
| Humidity |
20% to 80% RH |
|
|
Automation Level |
Fully Automated Filling, Sealing, and Pouch Handling |
|
|
Batch Coding |
35 mm x 35 mm (Printing Area) |
|
Electrical Specification |
||
|
Control & Command System |
PLC & HMI 7" (Touch Screen) (Fuji) |
|
|
Power Supply |
4 KW (1-Phase) |
|
|
Heater |
Ceramic Heater (Rod Type) |
|
|
Sealing Temperature Range |
100° C to 220° C (Adjustable for Different Film Types) |
|
|
Data Logging |
Production Monitoring, Error Tracking, and Pouch Count Logging |
|
| Sensor | Photoelectric Sensors for Pouch Detection, Filling Level Control, and Sealing | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Cylinder | SMC | |
| Batch Coding | Pneumatic | |
Machine Structure |
||
| Machine Construction | M.S. Duly Powder Coated | |
| Contact Parts | Food-Grade Stainless Steel for Easy Cleaning and Durability | |
| Weighing Platform | Stainless Steel, Vibration-Resistant Design for Accurate Measurements | |
| Number of Screw | 1 Nos. | |
| Weighing Method | Screw Filling | |
| Weighing Precision | Adjustable Depending on the Product’s Required Weight Tolerance | |
| Machine Length | ~ 944 mm | |
| Machine Width | ~ 1537 mm | |
| Machine Hight | ~ 2334 mm | |
|
Machine Weight |
~ 550 kg. |
|
Optional Features |
||
| Printer | High-Quality, Durable Printing of Variable Batch Coding and Barcodes on Flexible Packaging Printing | |
| Vacuum | Removes Air From The Packaging, To Enhance Product Preservation and Prevent Spoilage | |
Required Accessories |
||
| Air Compressor | 3 H.P. | |
| Ventilation | Required for Cooling and Exhaust, Particularly for High-Speed or Continuous Operations | |
|
Stabilizer |
3 KVA |
