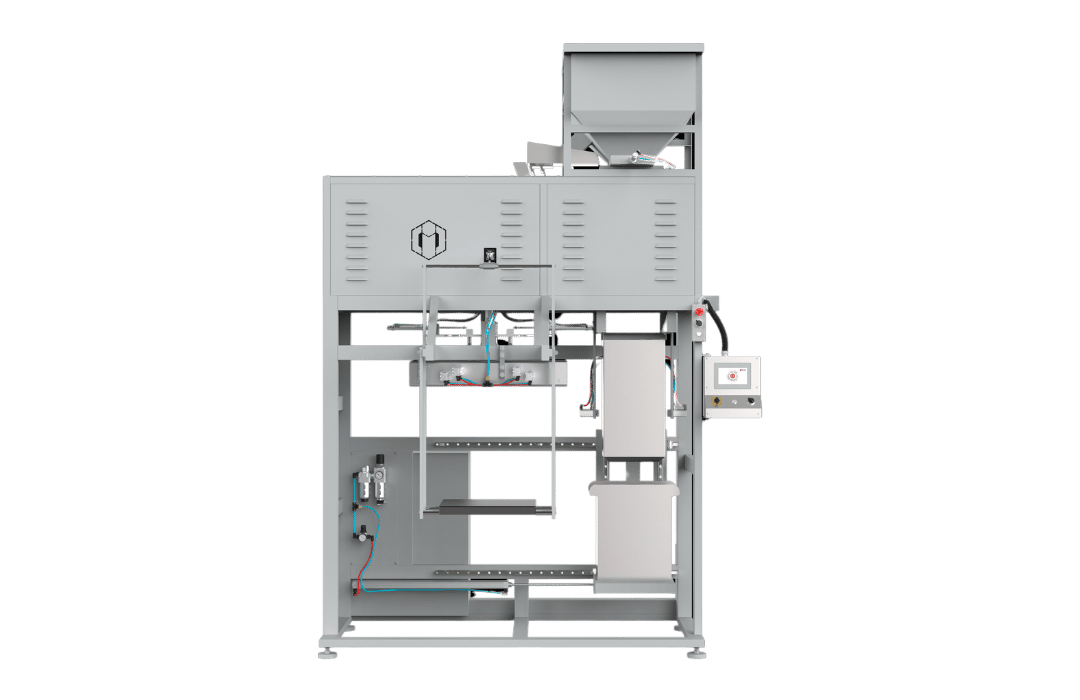

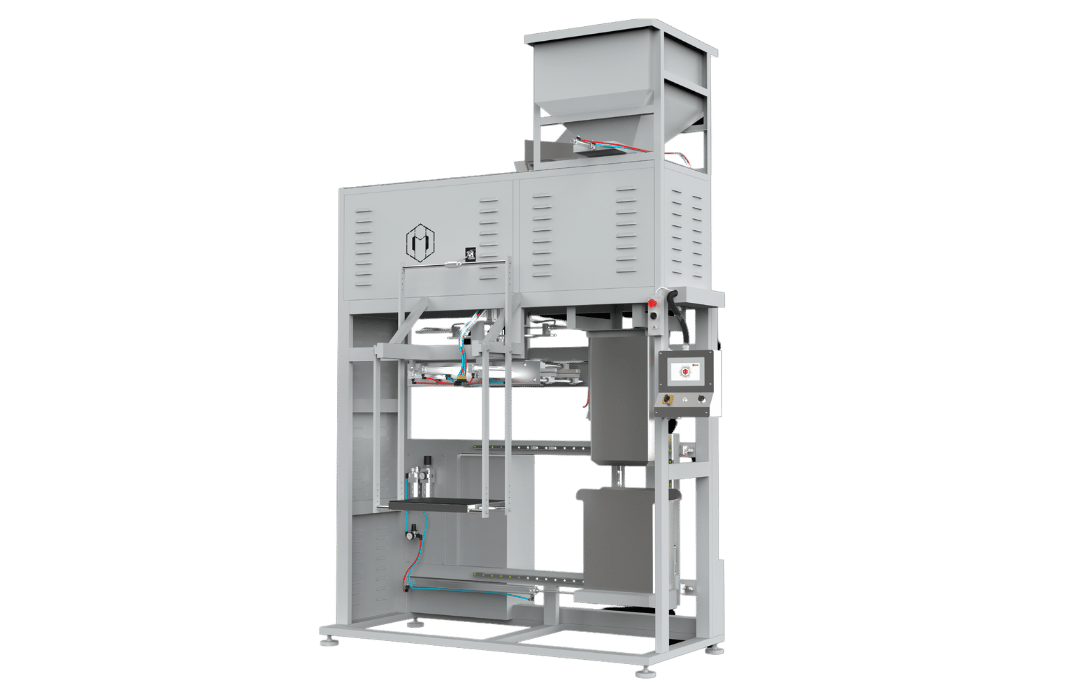

Automatic Bulk Vacuum Packing Machine

Download Sheet
Consistent Quality
Secured Sealing
Advanced Vacuum Technology

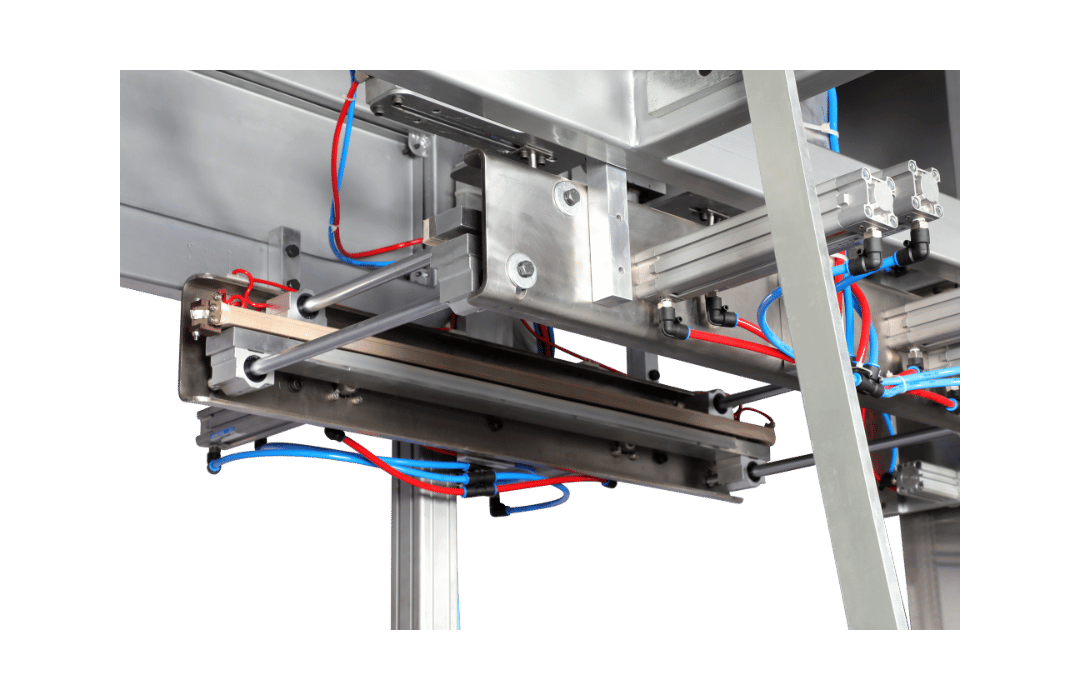

Longer Sealing Bar
Up to 50 Kg Weight
Accurate Weighing

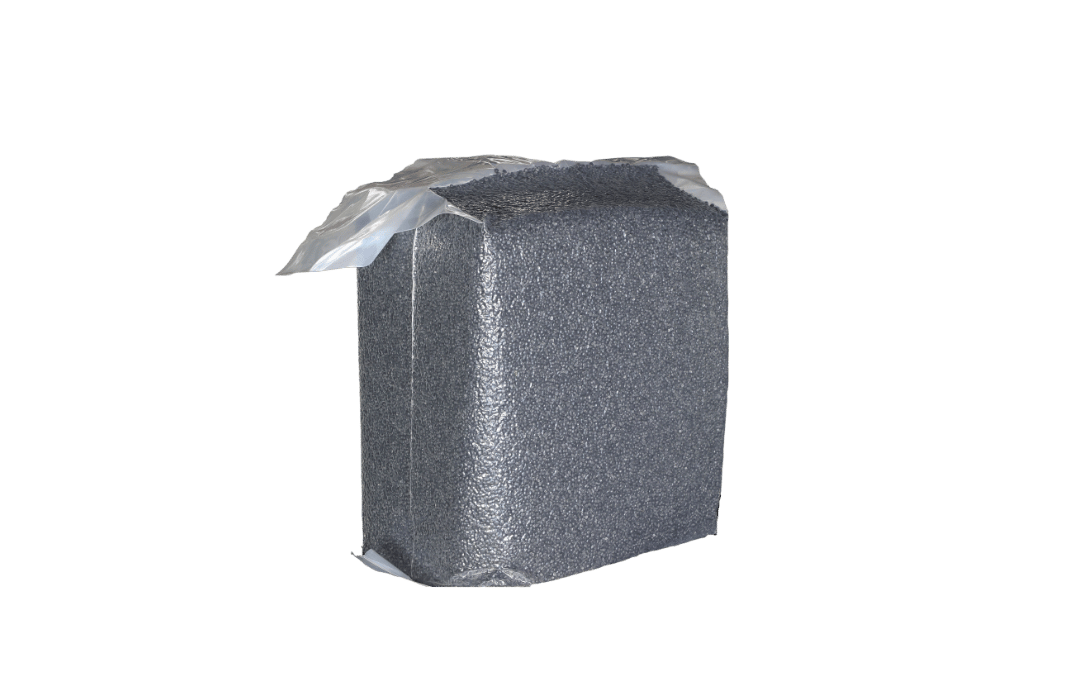

Types of packages

Vaccum
Gas Flushing

Products that can be packed

Sticky Powder
Free-Flow Powder
Pulses & Produce

Technical Specification

Production Capacity


Production Capacity

2 to 3 Bags per Minute (Depend on Product)
Product to be Filled   Food Products, Agriculture Products, Pharmaceuticals, Electronics, Industrial Products & any Free Flow Products, Etc.
Error in Weight   +/- 0.5% (Depends on Product)


Machine Specification


Weight Variants

10 to 25 Kg. (Depend on the Product)
Sealing Length

762 mm
Sealing Width

8 mm
Former Size

14.4 x 9.4 x 19 inches for 25 kg. (Depend on Product)

14.5 x 5 x 18 inches for 12.5 kg. (Depend on Product)
Sealing Type

Pneumatic

Vacuum Pump



Dicon (LPM 65)

Vacuum Operation



Nozzle


Electrical Specification

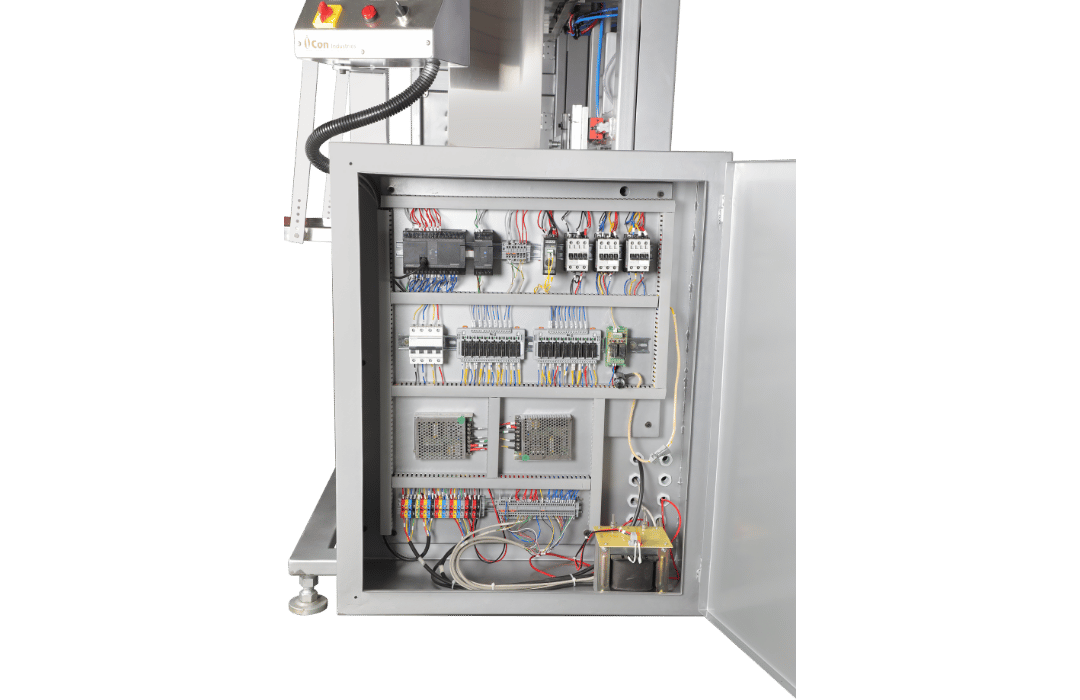

Control System



PLC & HMI 7" (Touch Screen) (Fuji)

Power



440 V AC (3-Phase)


Pneumatic Specification



Air Required



6 to 7 Bar

Pneumatic Parts



Janatics


Machine Structure



Machine Construction



Stainless Steel 304 & M.S. (Powder Coated)

Machine Length

   ~ 2155 mm
Machine Width   ~ 1360 mm
Machine Height   ~ 3288 mm
Machine Weight   ~ 400 Kg.


Required Accessories


Compressor Required   5 H.P.
