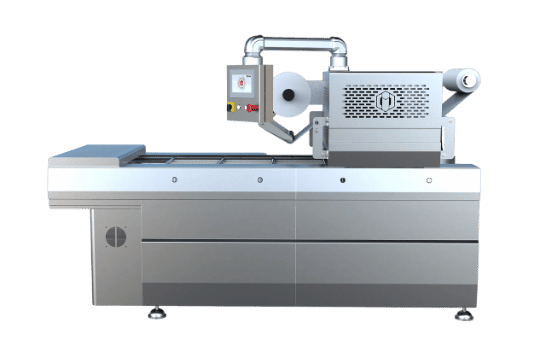

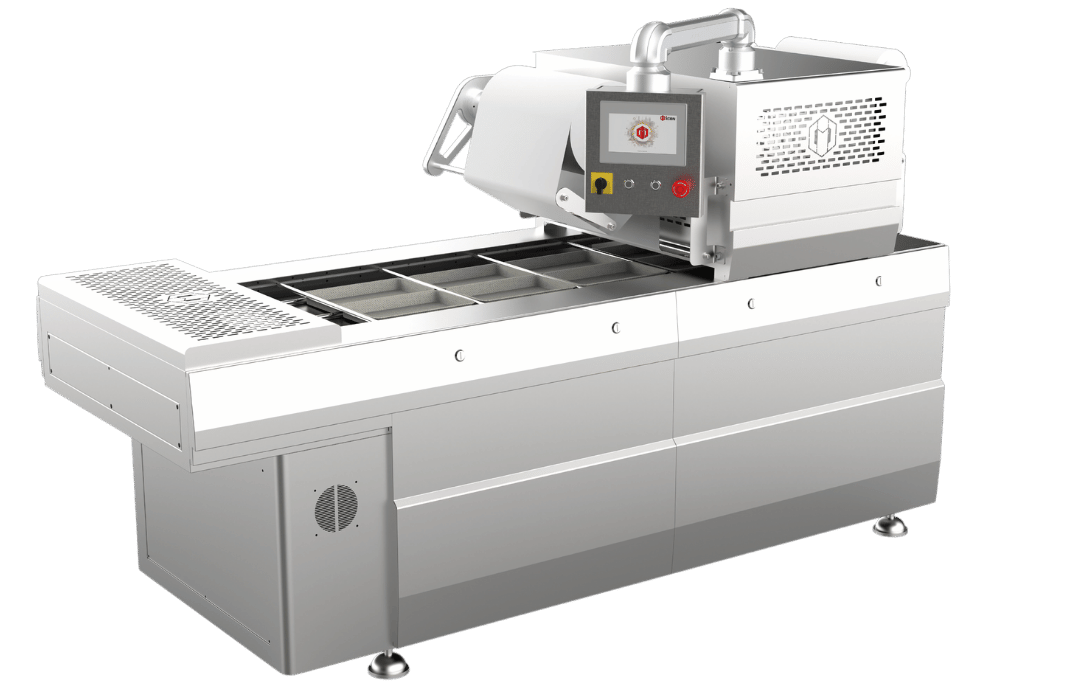

Continuous Tray Sealer (MAP)
Hygienic & Safe Design
Consistent Quality
Secured Sealing
Advanced Gas Flushing
Extended Shelf-Life
IP65 Standards
Types of packages
Gas Flushing
Premium Sealing

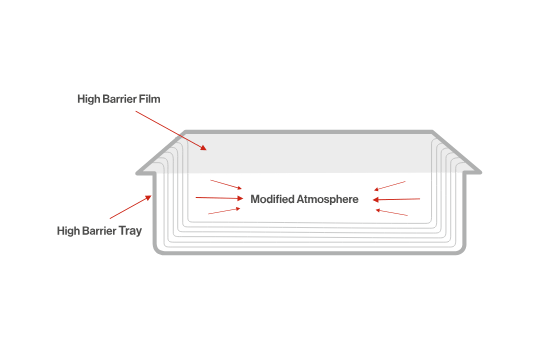

Modified Atmospheric Packaging
Skin
Products that can be packed
Dates
Sweet
Namkeen & Farsan
Ready & Cooked Meals
Bakery
Meat & Poultry
.png)
Sea Food
.png)
Fruits and Vegetable
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
4 to 5 Cycles / Minute |
|
| Production Output | 720 to 900 Trays / Hour (For 250 Gram) | |
| Products | Meat, Sweets & Savories, Bakery | |
Machine Specification |
||
| Type | Top Sealing | |
| Application | MAP, Sealing, Skin | |
| Upper Film |
Printed / Plain, Easy Peel, Retortable |
|
| Tray Material |
High Barrier Rigid (Pre-Formed) |
|
| Tray Shape And Size |
Customized |
|
| Vacuum Pump |
Busch / Becker |
|
| Mold Matrix |
3 Trays (For 200/250 Gram) 2 Trays (For 500 Gram) 1 Tray (For 1000 Gram) |
|
| Packet Weight Variants |
100, 200, 400, 500, and 1000 Gram Etc. (Can be customized) |
|
| Feeding System | Manual Placement of the Tray in the Feeding Area | |
Electrical Specification |
||
| Control & Command System | PLC & HMI 7" (Touch Screen) (Fuji) | |
| Total Installed Power | 15 KW | |
| Electrical Voltage | 440V AC (3-Phase) | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Components | SMC or Festo | |
Machine Structure |
||
| Machine Construction | Stainless Steel 304 & Aluminum Assemblies | |
|
Machine Length |
~ 2306 mm | |
|
Machine Width |
~ 890 mm | |
|
Machine Height |
~ 1485 mm | |
|
Machine Weight |
~ 550 Kg. | |
Required Application |
||
| Air Compressor | 5 H.P. | |
| Air Dryer | 20 CFM | |
| Online Printer | Inkjet Printer with Conveyor |
