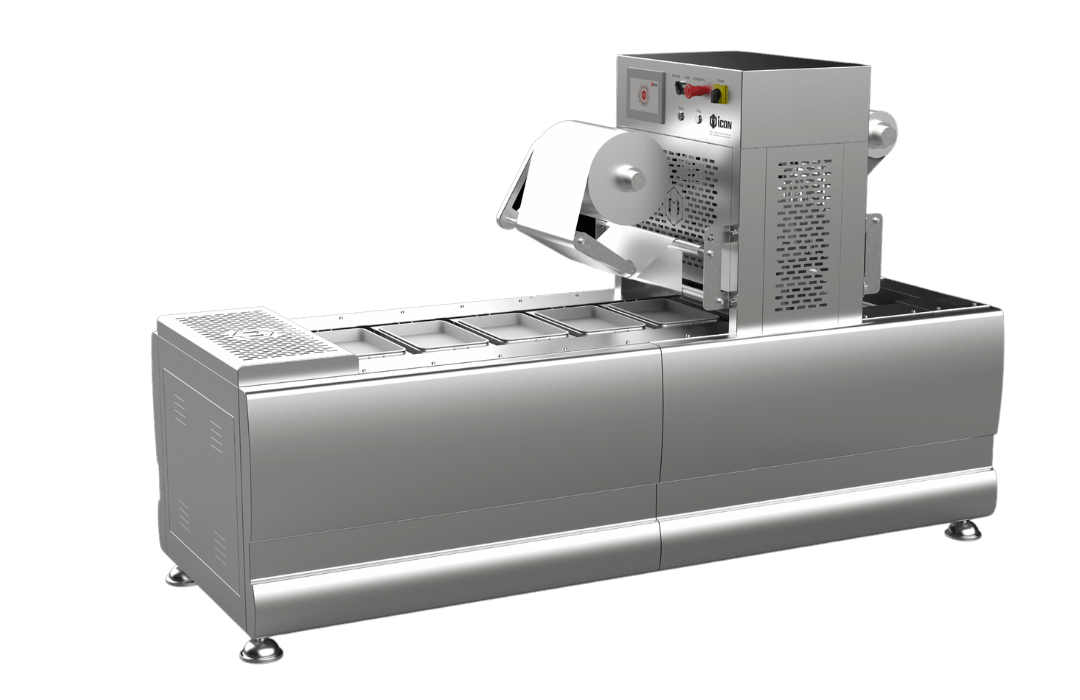

Continuous Tray Sealer (Only Sealing)
Hygienic & Safe Design
Consistent Quality
International Standards
Secured Sealing
Extended Aesthetics
Types of packages

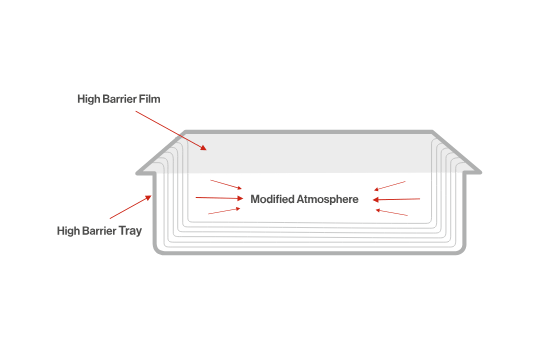

Premium Sealing
Products that can be packed
Sweet
Dry Fruits
Namkeen & Farsan
Ready & Cooked Meals
Bakery
.png)
Fruits and Vegetable
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
Upto 7 to 9 Cycles per Minute (Depend on Product) |
|
| Production Output |
1260 to 1620 Trays per Hour (for 200 Grams or 250 Grams) |
|
| Products | Meats, Sweets & Savories, Bakery | |
Machine Specification |
||
| Type |
Top Sealing |
|
| Application |
Sealing |
|
| Upper Film |
Printed / Plain, Easy Peel |
|
| Tray Material |
Heat Sealable Tray (Pre-Formed) |
|
| Tray Shape and Size |
Customized |
|
| Mold Matrix |
Depend on the Tray Size |
|
| Packet Weight Variants |
100, 200, 400, 500 and 1000 Grams, etc. (Can be customized) |
|
| Feeding System | Manual Placement of the Tray in the Feeding Area | |
Electrical Specification |
||
| Control & Command System |
PLC & HMI 7" (Touch Screen) (Fuji Make) |
|
| Total Installed Power | 6 KW | |
| Electrical Voltage | 440V AC (3-Phase) | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Components | SMC or Festo | |
Machine Structure |
||
| Machine Construction |
Stainless Steel 304 & Aluminum Assemblies |
|
|
Machine Length |
~ 2193 mm |
|
|
Machine Width |
~ 800 mm |
|
|
Machine Height |
~ 1356 mm | |
| Machine Weight | ~ 550 Kg. | |
Required Accessories |
||
| Air Compressor | 5 H.P. | |
| Air Dryer | 20 CFM | |
| Printer | Inkjet Printer with Conveyor |
