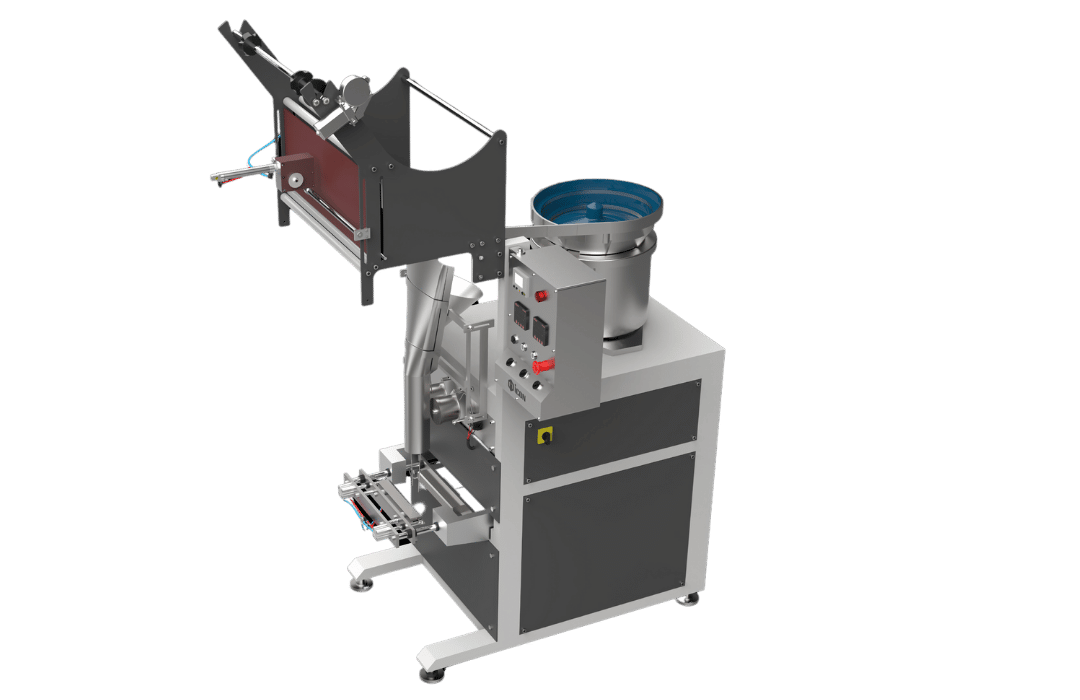

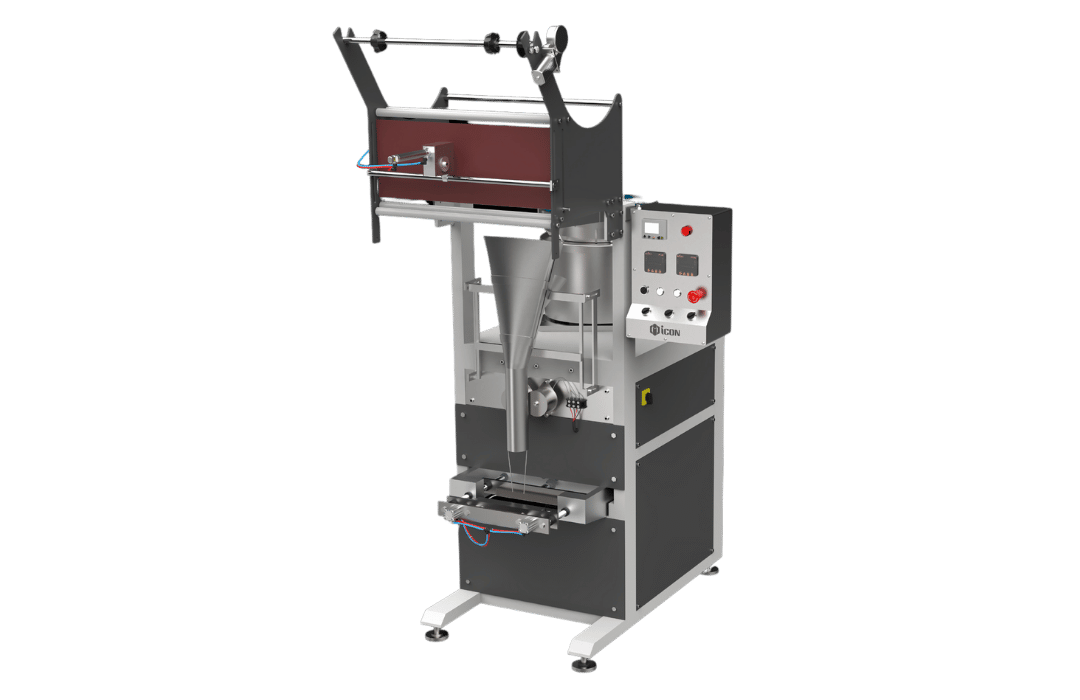

Counting Type VFFS Prime

1 to 1000 Units / Pouch (Depend on Product)

20 to 25 Pouch / Minute (Depend on Product)

± 0.5 to ± 2 Gram Depending on The Product

Tablets, Capsules, Pills, Small Parts, Candy, Nuts, Etc.

60 Ltr. (Depending on Product and Desired Volume)

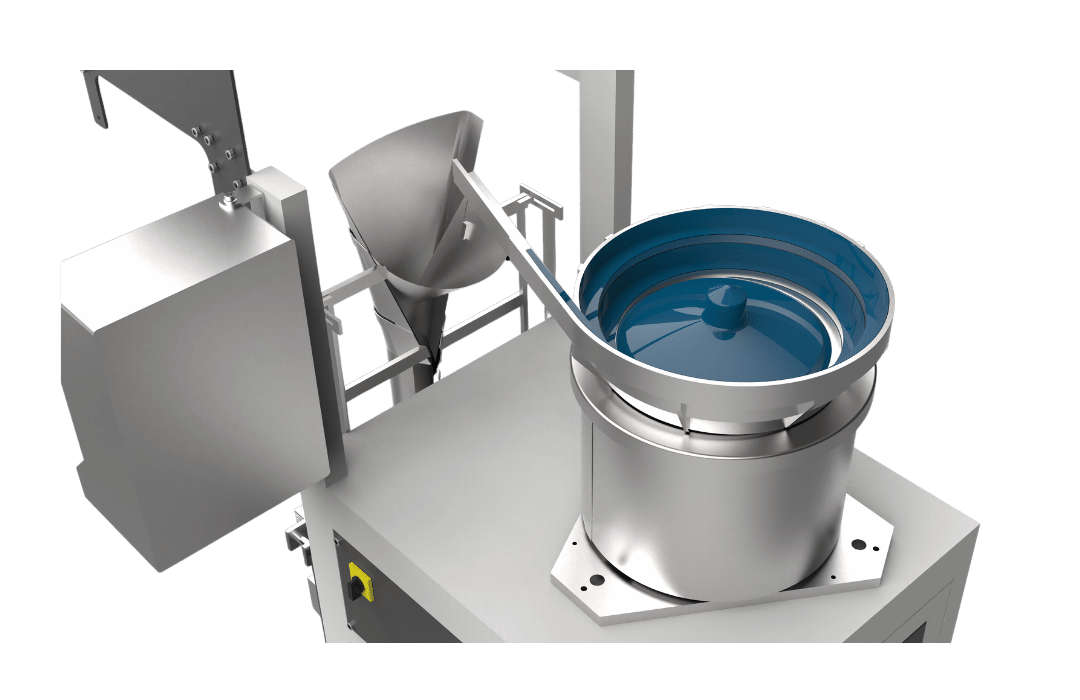

Vibrating Hopper, Photoelectric Sensor or Mechanical Counter

Automatic Counting and Filling by Units or Pieces

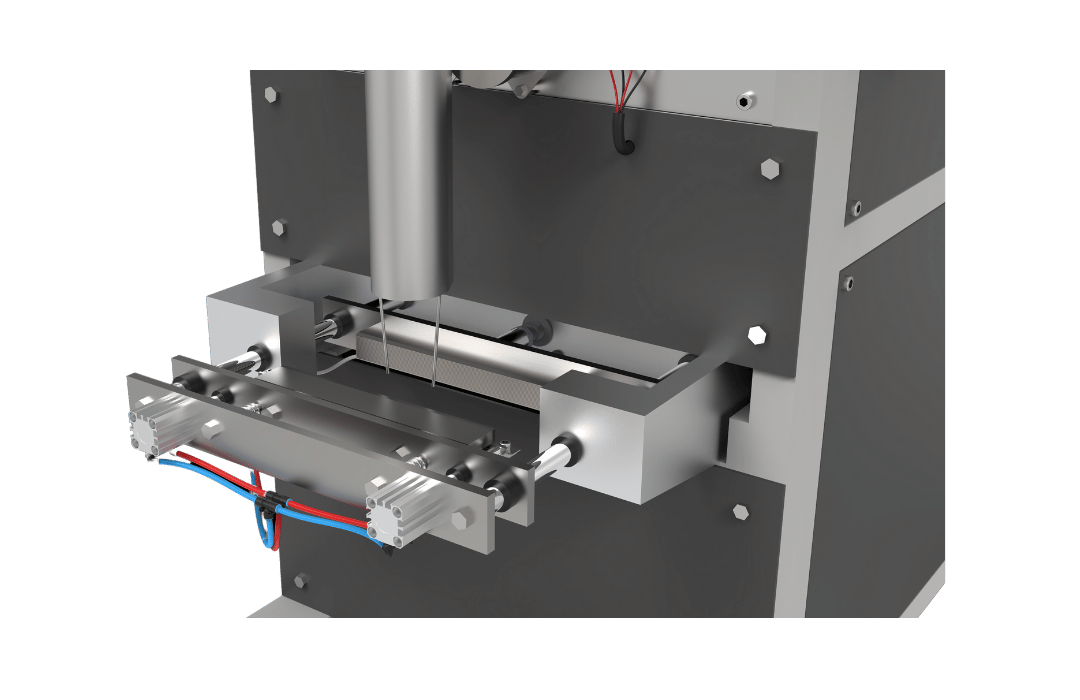

Center Seal / Side Seal

Laminated Heat Sealable Film

Frequency Based

Fully Automated Filling, Sealing, and Pouch Handling

35 mm x 35 mm (Printing Area)

PLC & HMI 7" (Touch Screen) (Fuji)

4 KW (1-Phase)

Ceramic Heater (Rod Type)

100° C to 220° C (Adjustable for Different Film Types)

Production Monitoring, Error Tracking, and Pouch Count Logging

Photoelectric Sensors for Pouch Detection, Filling Level Control, and Sealing

6 to 7 Bar

SMC

Pneumatic

~ 550 Kg.
