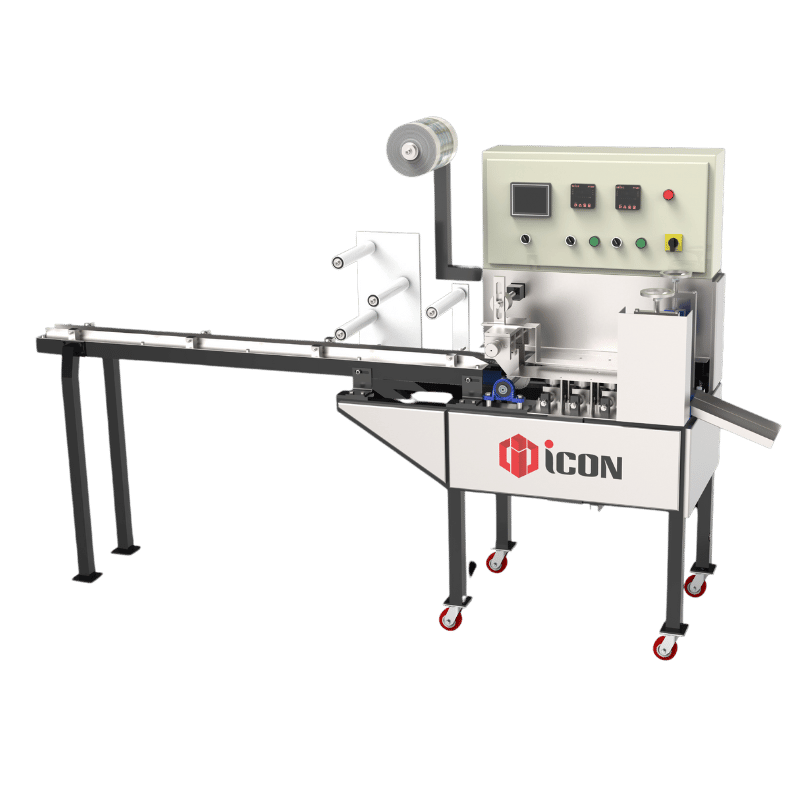

Flow Wrap Pouch Packing Machine

Download Sheet
Secured Sealing
Linear Movement
Customizable Packaging
Optional Gas Flushing

Types of packages

Gas Flushing
Center Seal
Side Seal
Wrapping
Seal

Products that can be packed

Sweet
Tamarind
Bakery
Plastic Parts
Household Products
Personal Care Products
Industrial Items
Toys and Crafts
Medical Devices
Surgical Items
Sanitary Pads & Diapers

Technical Specification

Production Capacity


Cycle per Min.   30 to 35 Packs / Minute (Variable Depending on Product and Size)
Product Types   Bakery Products, Confectionery, Snacks, Pharmaceuticals, Etc.
Error in Weight   98% + Uptime (Depends on Product Type and Operator Skill)
Product Type   Granules, Powder, Solid Products, Snacks, Nuts, Candies, Etc.


Machine Specification


Hopper Capacity

Depend on Product

Filling System Options



Manual or Automatic Filling Options
Sealing Type

Pillow Seal, Side Seal, End-To-End Seal
Packing Material

Laminated Heat Sealable Film

Automation Level



Fully Automated Filling, Sealing, And Pouch Handling

Batch Coding



35 mm x 35 mm (Printing Area)


Electrical Specification

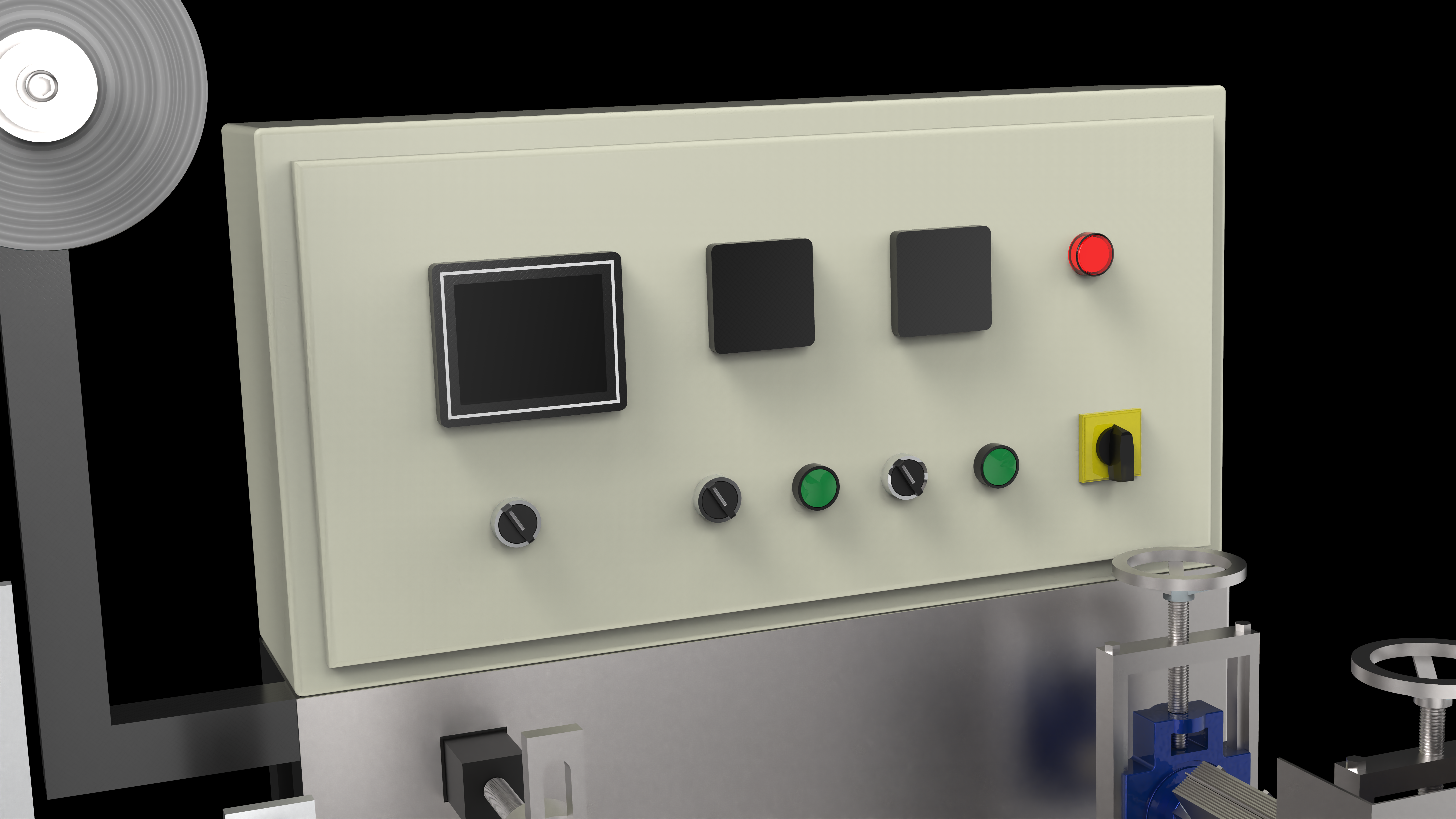

Control & Command System   PLC & HMI 7" (Touch Screen) (Fuji)
Power Supply   4 KW (1-Phase)
Heater   Ceramic Heater (Rod Type)
Sealing Temperature Range   100° C to 220° C (Adjustable For Different Film Types)
Data Logging   Production Monitoring, Error Tracking, and Pouch Count Logging
Sensor   Photoelectric Sensors For Pouch Detection, Filling Level Control, and Sealing


Pneumatic Specification


Air Pressure   6 to 7 Bar
Pneumatic Cylinder   SMC
Batch Coding   Pneumatic


Machine Structure


Machine Construction   M.S. Duly Powder Coated
Contact Parts   Food-Grade Stainless Steel for Easy Cleaning and Durability
Machine Length   ~ 1244 mm (as per Customer Requirement)
Machine Width   ~ 1537 mm
Machine Hight   ~ 1433 mm
Machine Weight   ~ 300 kg to 800 kg (Depending on Configuration and Features)


Optional Features


Printer   High-Quality, Durable Printing of Variable Batch Coding and Barcodes on Flexible Packaging Printing


Required Accessories



Air Compressor



3 H.P.

Stabilizer



3 KVA
