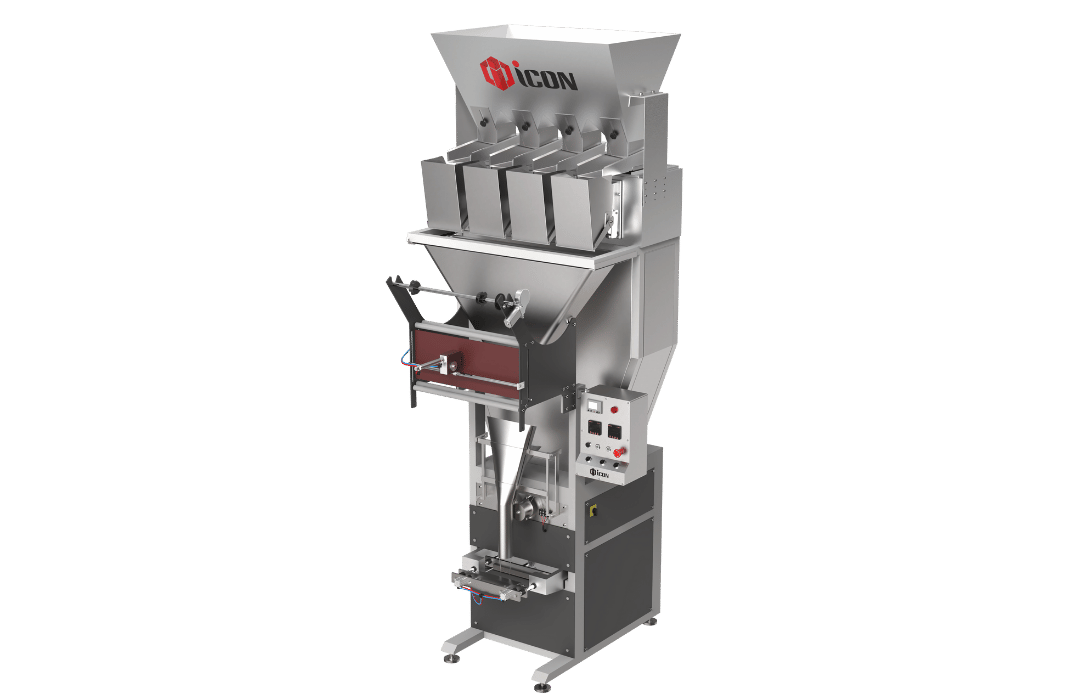

Four Head VFFS Prime
Hygienic & Safe Design
Consistent Quality
International Standards
Limited Weight Variants
Easy to Operate
High Production Output
Types of packages
Products that can be packed
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Technical Specification
Production Capacity |
||
|---|---|---|
| Cycle per Min. |
20 to 25 Pouch / Min. (Depend on Product and Load) |
|
| Pouch Volume Capacity |
5 to 500 gm / Weighment (Depend on Product) |
|
| Error in Weight |
±0.5 to ± 2 Gram (Depends on Product and Load) |
|
| Product Type | Granules, Powder, Solid Products, Snacks, Nuts, Candies, Etc. | |
Machine Specification |
||
| Hopper Capacity |
40 Ltr. (Depending on Product and Desired Volume) |
|
|
Filling System |
Weigh Filling | |

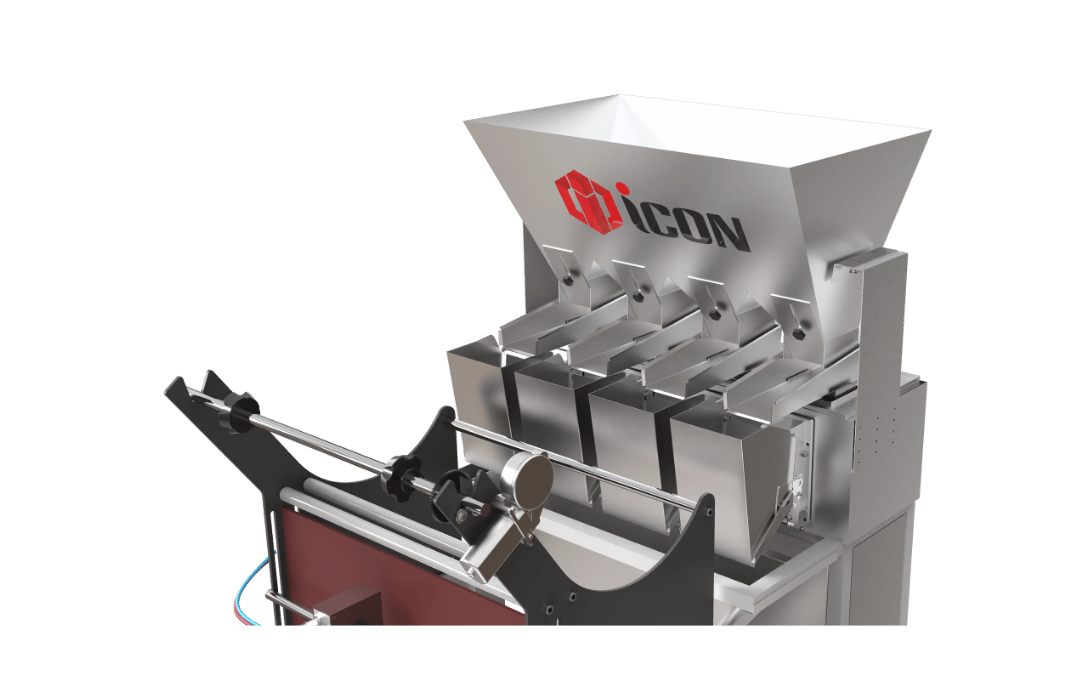

| Number of Heads |
4 Heads (Multi-Head System For Fast and Accurate Weighing) |
|
| Weighing Method |
Vibratory, Force Balance or Load-Cell Based System |
|

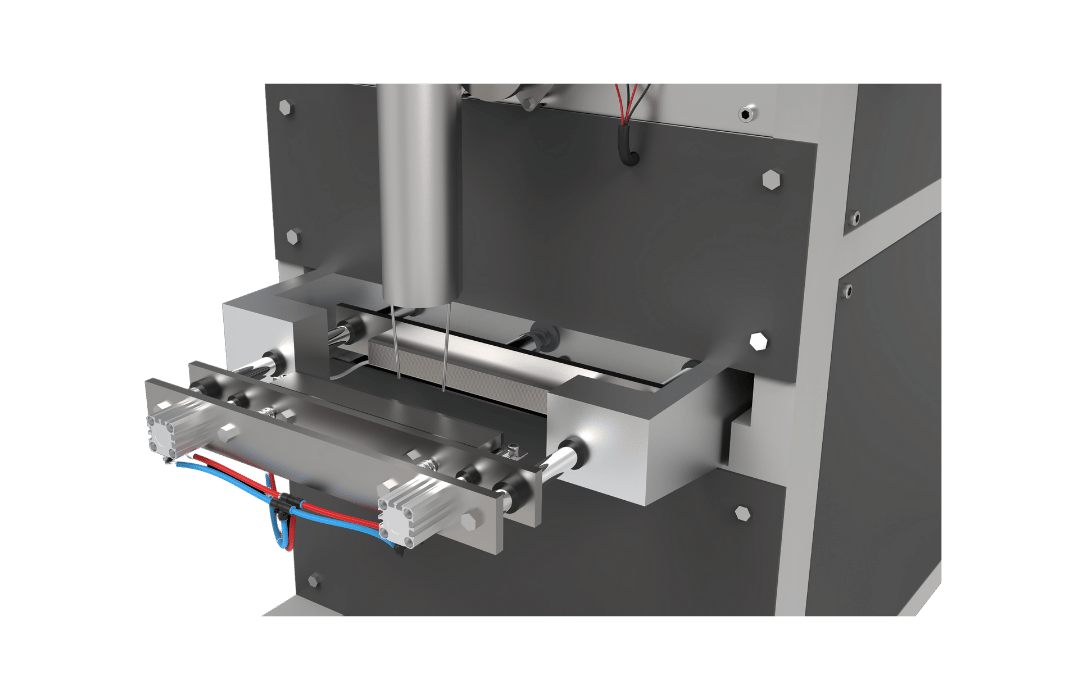

| Sealing Type |
Center Seal / Side Seal |
|
| Packing Material |
Laminated Heat Sealable Film |
|
|
Automation Level |
Fully Automated Filling, Sealing, and Pouch Handling |
|
| Batch Coding | 35 mm x 35 mm (Printing Area) | |
Electrical Specification |
||
|
Control & Command System |
PLC & HMI 7" (Touch Screen) (Fuji) |
|
|
Power Supply |
5 KW (1-Phase) |
|
|
Heater |
Ceramic Heater (Rod Type) |
|
|
Sealing Temperature Range |
100° C to 220° C (Adjustable for Different Film Types) |
|
|
Data Logging |
Production Monitoring, Error Tracking, and Pouch Count Logging |
|
| Sensor | Photoelectric Sensors For Pouch Detection, Filling Level Control, and Sealing | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Cylinder | SMC | |
| Batch Coding | Pneumatic | |
Machine Structure |
||
|
Machine Construction |
M. S. Duly Powder Coated |
|
|
Contact Parts |
Food-Grade Stainless Steel for Easy Cleaning and Durability |
|
|
Machine Length |
~ 1080 mm |
|
|
Machine Width |
~ 1537 mm |
|
|
Machine Hight |
~ 3134 mm | |
|
Machine Weight |
~ 550 Kg. | |
Optional Features |
||
| Printer | High-Quality, Durable Printing of Variable Batch Coding and Barcodes on Flexible Packaging Printing | |
| Nitrogen Flushing | Remove Oxygen From The Packaging, Preserving Product Freshness and Extending Shelf Life | |
| Vacuum | Removes Air From The Packaging, To Enhance Product Preservation and Prevent Spoilage | |
Required Accessories |
||
|
Air Compressor |
3 H.P. | |
|
Stabilizer |
3 KVA |
