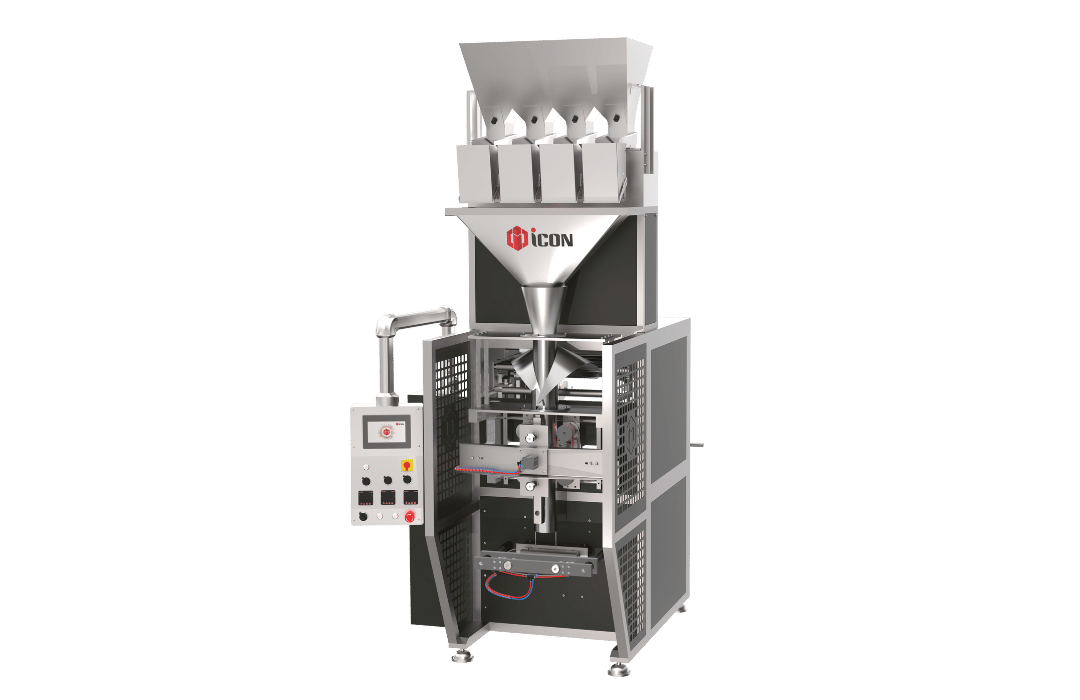

Four/Six Head VFFS Pro
International Standards
Pneumatic Operations

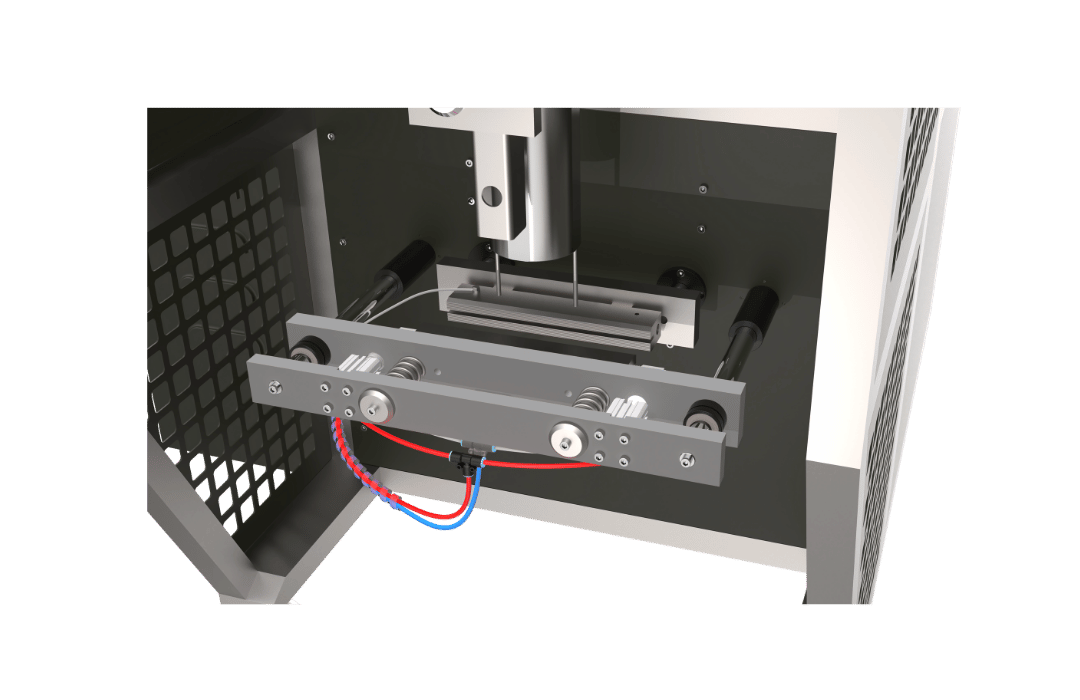

Secured Sealing
Capability to pack more Weight
High Production Output
Customised Sealing Width
Types of packages
Gas Flushing

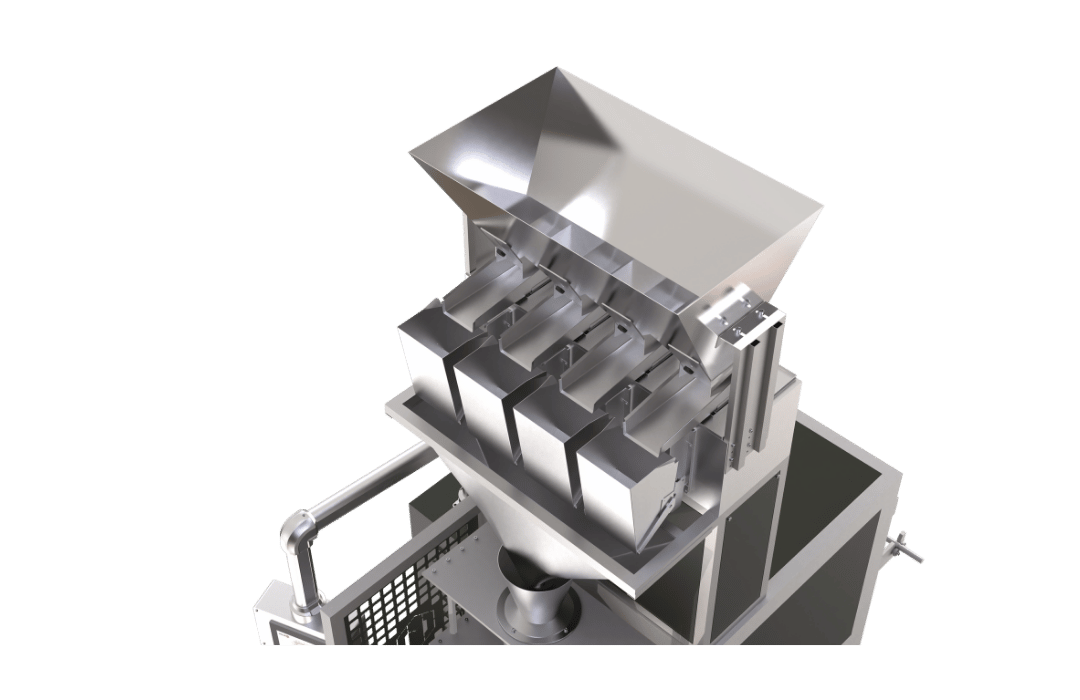

Weighing
Center Seal
Side Seal
Gadget
D Cut
Fill
Products that can be packed
Dates
.png)
Free-Flow Powder
Spices
Namkeen & Farsan
Convenience Foods
.png)
Confectionery
Bakery
Pulses & Produce
Plastic Parts
.png)
Plastic Granules
Agriculture
.png)
Household Products
.png)
Industrial Items
.png)
Pet Food
.png)
Toys and Crafts
.png)
Nut, Bolts & Screws
Technical Specification
Production Capacity |
||
|---|---|---|
| Cycle per Min. |
20 to 25 Pouch / Min. (Depend on Product and Load) |
|
| Pouch Volume Capacity |
250 Gram to 1 kg. / Weighment (Depend on Product) |
|
| Error in Weight |
±0.5 to ±2 Gram (Depends on Product and Load) |
|
| Product Type |
Granules, Powder, Solid Products, Snacks, Nuts, Candies, Etc. |
|
Machine Specification |
||
| Hopper Capacity |
60 Ltr. (Depend on Product) |
|
|
Filling System |
Weighing Scale |
|
| Number of Heads |
4 Heads (Multi-Head System For Fast and Accurate Weighing) |
|
| Weighing Method |
Vibratory, Force Balance or Load-Cell Based System |
|
| Sealing Type |
Center Seal / Side Seal |
|
| Packing Material |
Laminated Heat Sealable Film |
|
| Automation Level |
Fully Automated Filling, Sealing, and Pouch Handling |
|
| Batch Coding | 35 mm x 35 mm (Printing Area) | |
Electrical Specification |
||
| Control & Command System |
PLC & HMI 7" (Touch Screen) (Fuji) |
|
| Power Supply |
4 KW (1-Phase) |
|
| Heater | Ceramic Heater (Rod Type) | |
| Sealing Temperature Range | 100° C to 220° C (Adjustable for Different Film Types) | |
| Data Logging | Production Monitoring, Error Tracking, and Pouch Count Logging | |
| Sensor | Photoelectric Sensors For Pouch Detection, Filling Level Control, and Sealing | |
Pneumatic Specification |
||
| Air Pressure Required |
6 to 7 Bar |
|
| Pneumatic Cylinder |
SMC |
|
| Batch Coding | Pneumatic | |
Machine Structure |
||
|
Machine Construction |
M.S. Duly Powder Coated |
|
|
Contact Parts |
Food-Grade Stainless Steel for Easy Cleaning and Durability |
|
|
Machine Length |
~ 1100 mm | |
|
Machine Width |
~ 1740 mm | |
|
Machine Hight |
~ 2450 mm | |
|
Machine Weight |
~ 650 Kg. |
|
Optional Features |
||
| Printer | High-Quality, Durable Printing of Variable Batch Coding and Barcodes on Flexible Packaging Printing | |
| Nitrogen Flushing | Remove Oxygen From The Packaging, Preserving Product Freshness and Extending Shelf Life | |
| Vacuum | Removes Air From The Packaging, To Enhance Product Preservation and Prevent Spoilage | |
Required Accessories |
||
|
Air Compressor |
3 H.P. | |
|
Stabilizer |
3 KVA |
Related Products

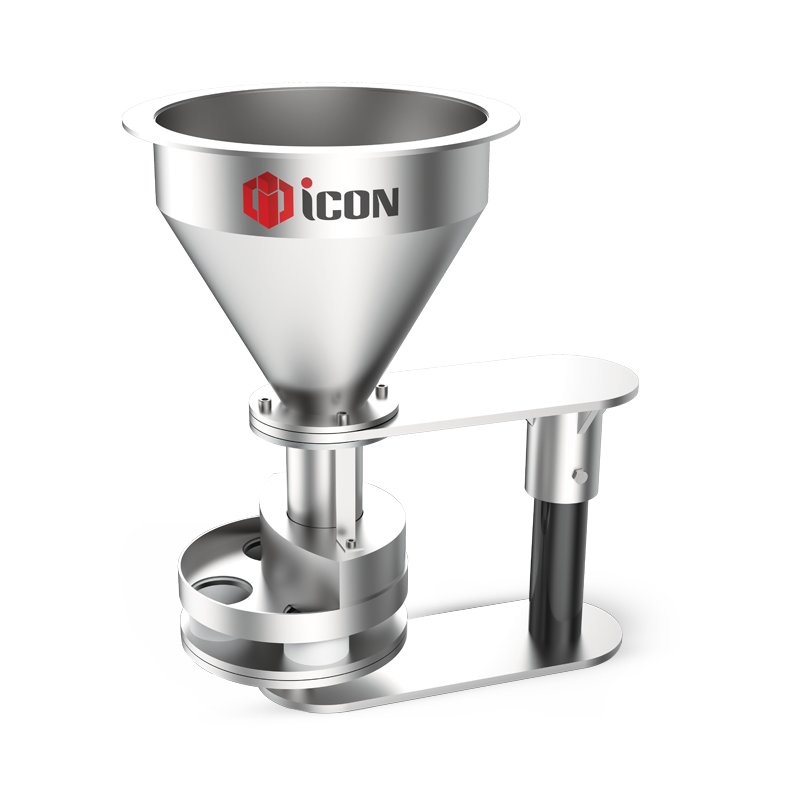

Cup Filler
View Details (3).png)
Auger Filler VFFS Prime
View Details
Auger Filler Weigher
View Details (5).png)
Counting Type VFFS Prime
View Details (19).png)

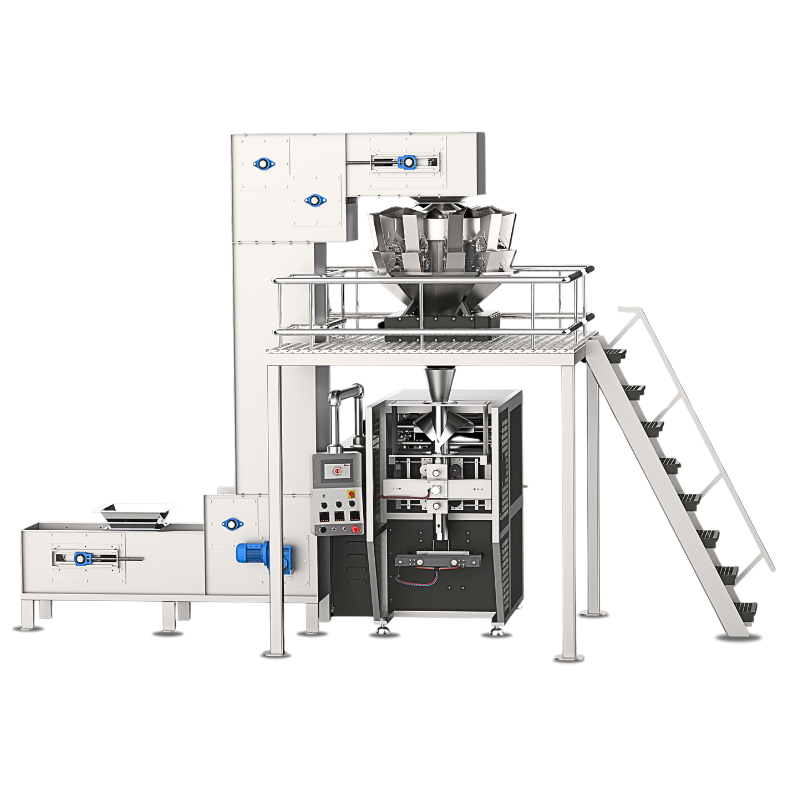

Multihead VFFS Pro
