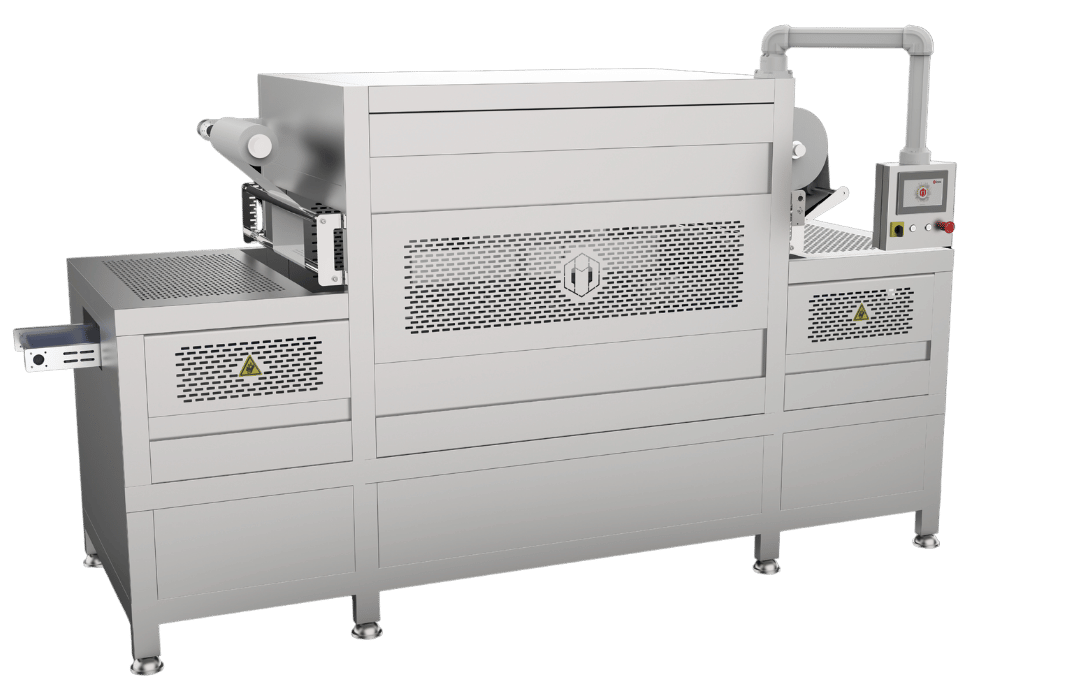

Inline Tray Sealer (MAP)
Hygienic & Safe Design
Secured Sealing
Advanced Gas Flushing
Rotary Table Movement
Optimal Speed Packaging
MAP Tray Sealing
Types of packages
Gas Flushing
Premium Sealing

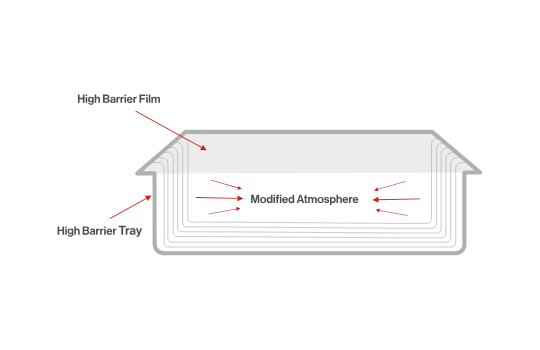

Modified Atmospheric Packaging
Skin
Products that can be packed
Dates
Sweet
Ready & Cooked Meals
Bakery
Meat & Poultry
.png)
Sea Food
.png)
Fruits and Vegetable
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
5 to 6 Cycles / Minute |
|
| Production Output |
900 to 1080 Trays / Hour (For 250 Gram) |
|
| Products | Meat, Sweets & Savories, Bakery | |
Machine Specification |
||
| Type | Top Sealing | |
| Application |
MAP, Sealing, Skin |
|
| Upper Film |
Printed / Plain, Easy Peel, Retortable |
|
| Tray Material |
High Barrier Rigid (Pre-Formed) |
|
| Tray Shape and Size |
Customized |
|
| Vacuum Pump |
Busch / Becker |
|
| Mold Matrix |
Depend on the Mold Size |
|
| Packet Weight Variants | 100, 200, 400, 500, and 1000 Grams, Etc. (Can be customized) | |
| Feeding System | Manual Placement of the Tray in the Feeding Area | |
Electrical Specification |
||
| Control & Command System |
PLC & HMI 7" (Touch Screen) (Fuji) |
|
| Total Installed Power |
10 KW |
|
| Electrical Voltage |
440V AC (3-Phase) |
|
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
|
Pneumatic Components |
SMC or Festo |
|
Machine Structure |
||
| Machine Construction | Stainless Steel 304 & Aluminum Assemblies | |
|
Machine Length |
~ 3428 mm | |
|
Machine Width |
~ 1130 mm | |
|
Machine Height |
~ 1926 mm |
|
|
Machine Weight |
~ 850 Kg. |
|
Required Application |
||
| Air Compressor | 5 H.P. | |
| Air Dryer | 20 CFM | |
| Online Printer | Inkjet Printer with Conveyor |
Related Products
 (24).png)

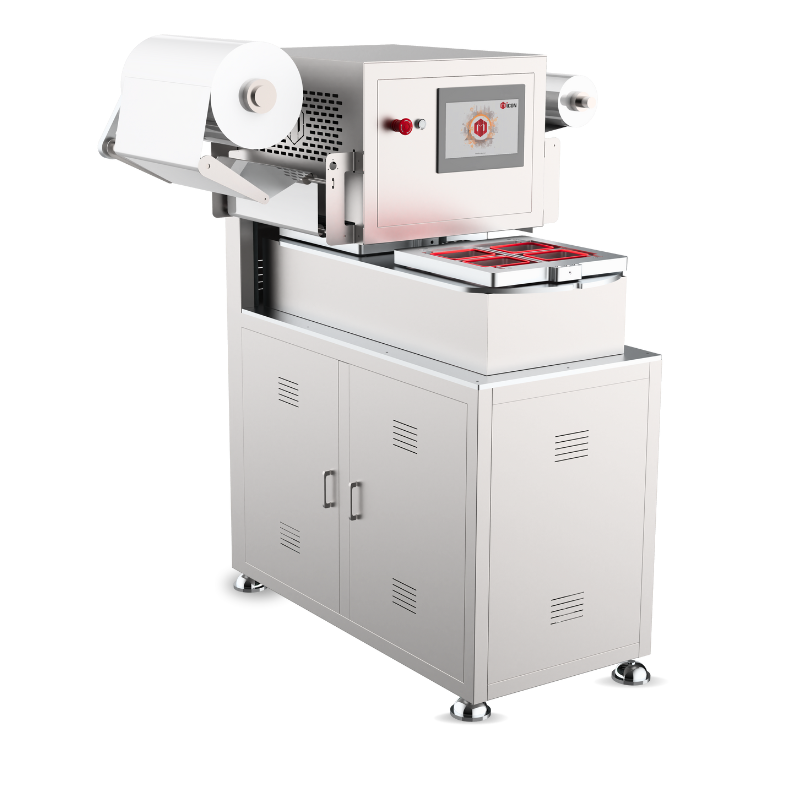

Rotary Tray Sealer (MAP)
View Details.png)

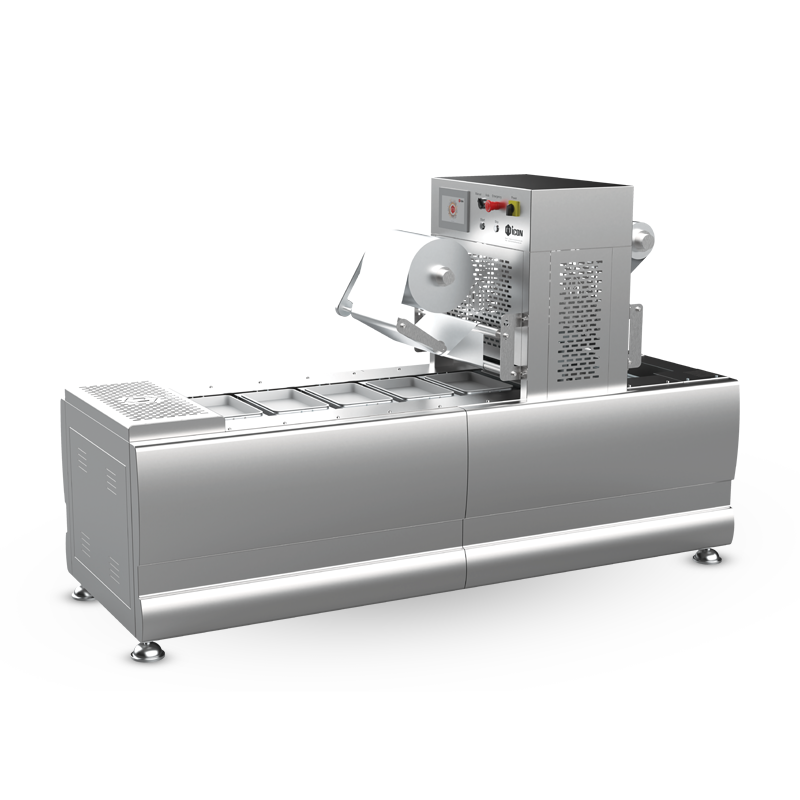

Continuous Tray Sealer (Only Sealing)
View Details

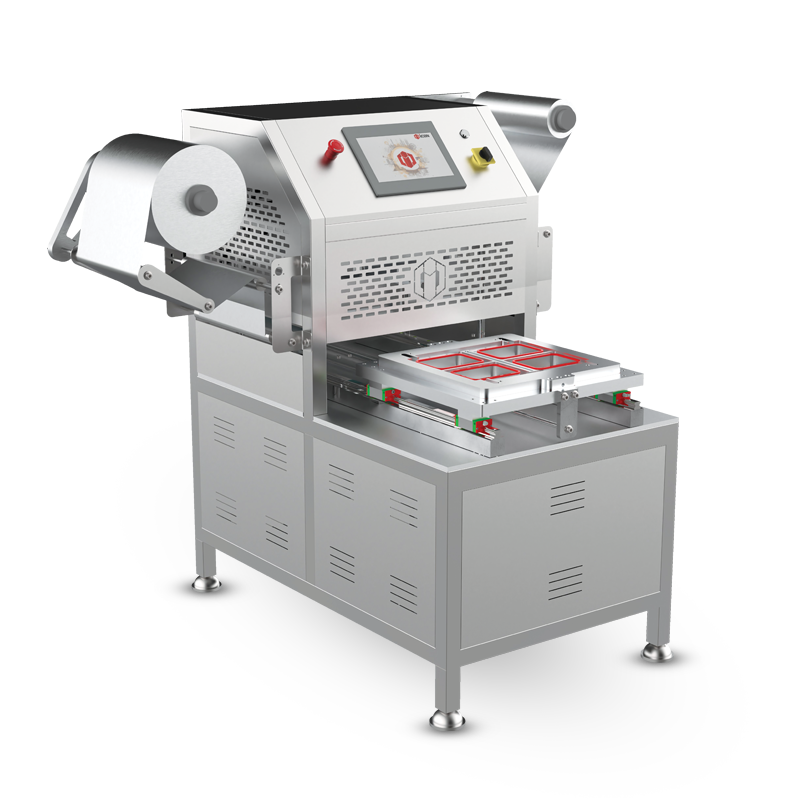

Linear Tray Sealer (MAP)
View Details
Shuttle Type Tray Sealer (MAP)
View Details.png)

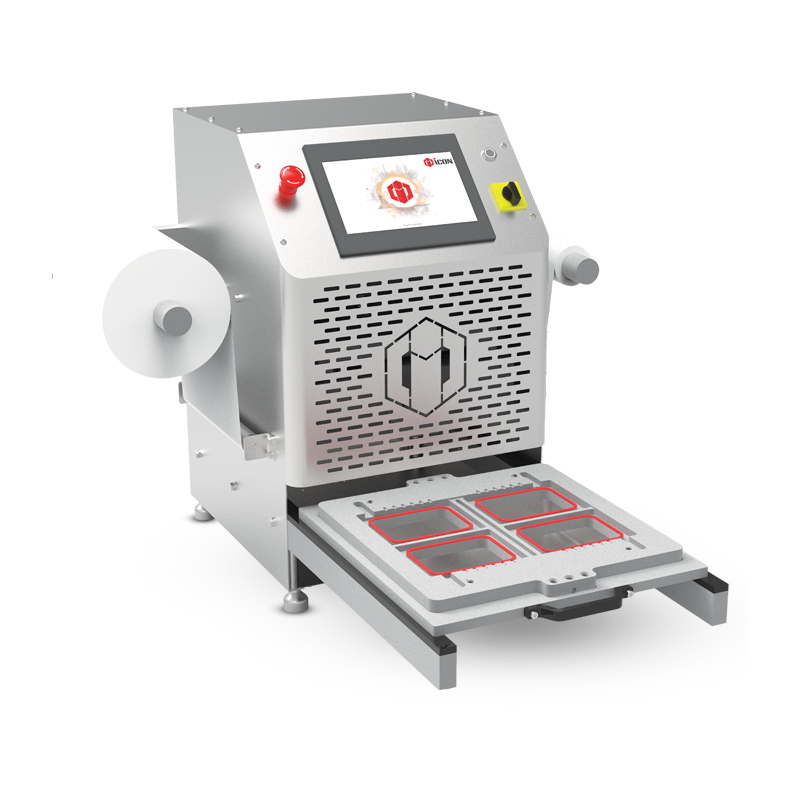

Table Top Tray Sealer
