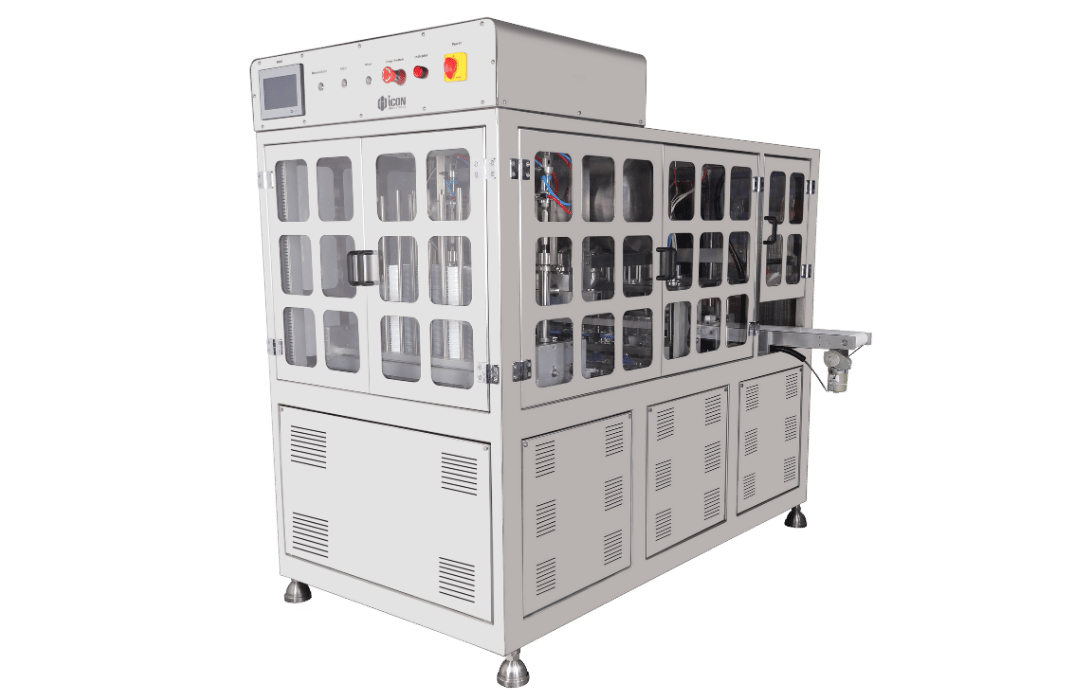

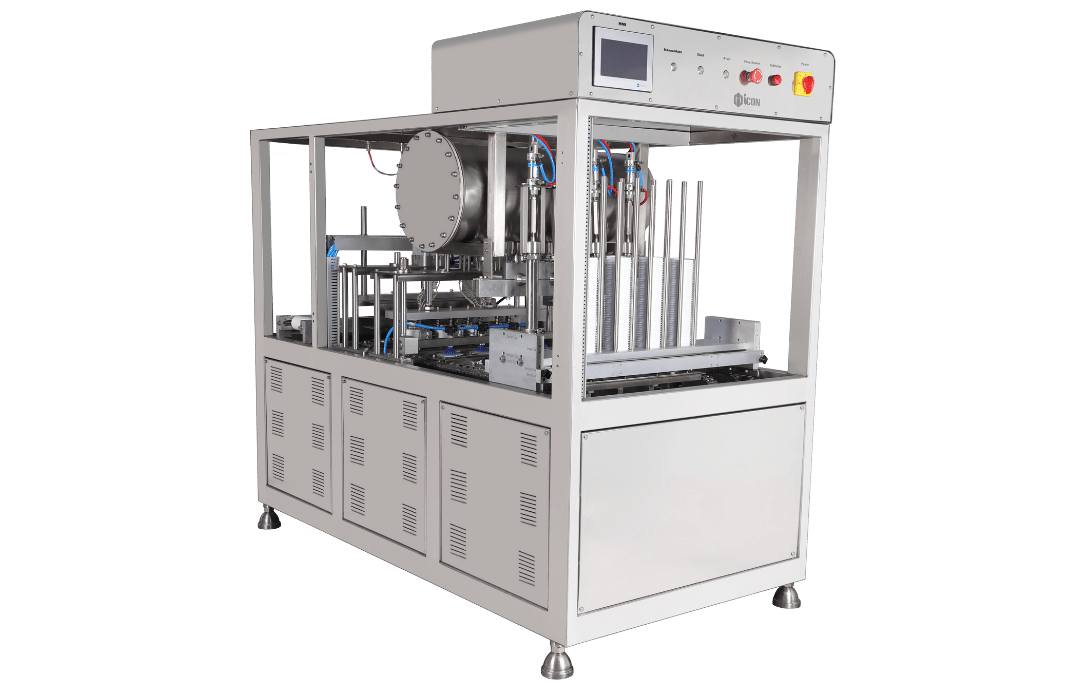

Linear Cup Filling Sealing Machine
Secured Sealing
Suitable for Various Cup Sizes
Linear Movement
Accurate Filling
Adjustable Filling Volumes
Intuitive Interface
Types of packages

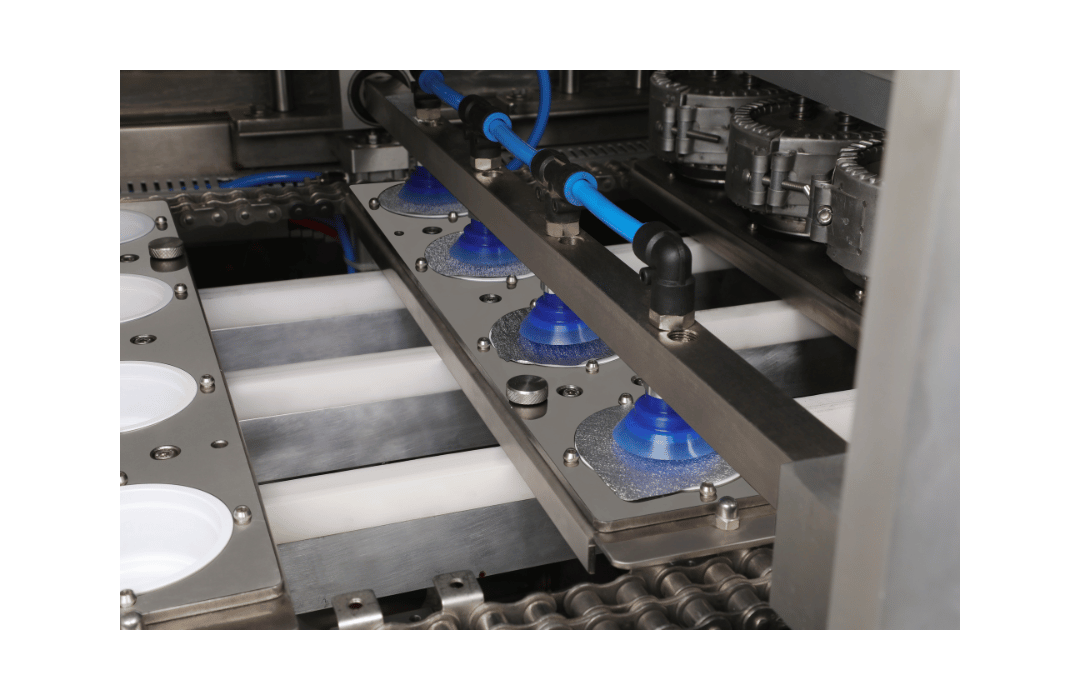

Premium Sealing

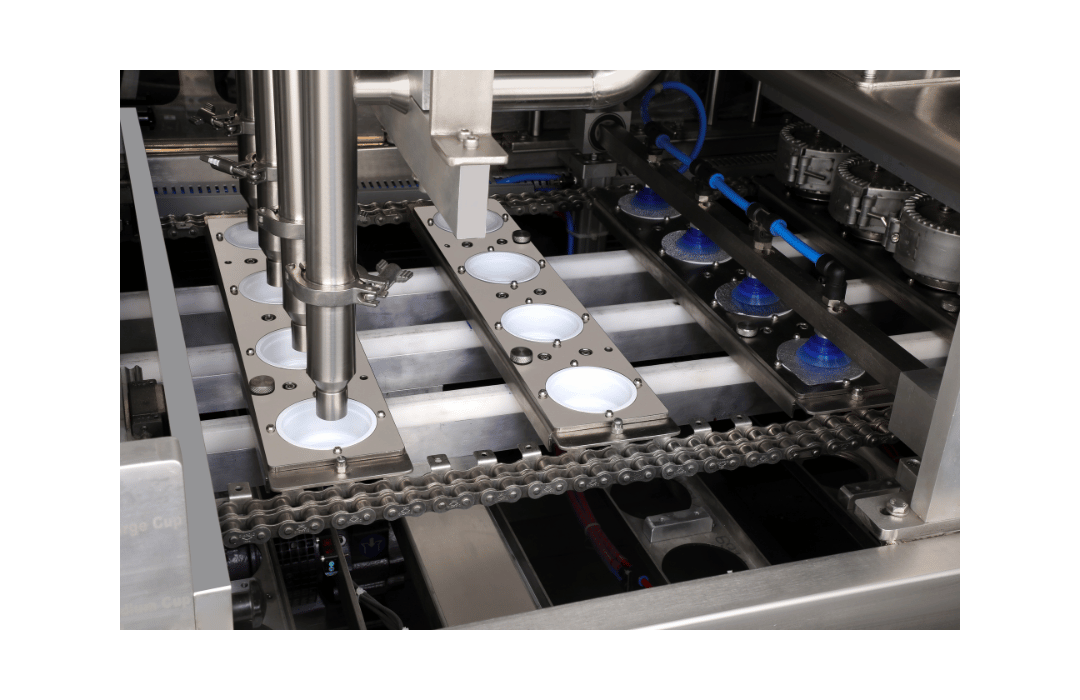

Filling
Products that can be packed
Curd
.png)
Fluids
Lassi
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
4000 to 4800 Pcs. / Hour |
|
| Suitable Filling Volume | 50 gm to 500 gm (Based on Product) | |
| Product to be Filled |
Curd, Juice, Paste, Cheese Spread, Cream, Butter, Jelly, Jam, Yogurt, Cheese, Margarine, Water, Etc. |
|
Machine Specification |
||
|
Filler System |
Gravity Filling System, Gear Pump (Servo Based) |
|
|
No. of Station |
5 (Can be Varied) |
|
|
Type |
Cup Filling & Sealing |
|
|
Upper Film |
Foil Sealing |
|
|
Cup Material |
High Barrier Rigid (Pre-Formed) |
|
|
Cup Shape and Size |
Customized |
|
Electrical Specification |
||
| Control & Command System | PLC & HMI 7" (Touch Screen) (Fuji) | |
| Total Installed Power | 6 KW | |
| Voltage Rating | 440 V, (3-Phase) | |
| Linear Actuator | Servo Motor | |
Pneumatic Specification |
||
|
Air Pressure |
6 to 7 Bar | |
|
Pneumatic Components |
SMC or Festo | |
|
Station Actuators |
Pneumatics | |
Machine Structure |
||
|
Machine Construction |
Stainless Steel 304 & Aluminum Assemblies |
|
| Machine Length | ~ 1870 mm | |
| Machine Width | ~ 1377 mm | |
| Machine Height | ~ 1700 mm | |
Required Application |
||
| Air Compressor | 5 H.P. | |
| Air Dryer | 20 CFM | |
| Online Printer | Inkjet Printer with Conveyor |
