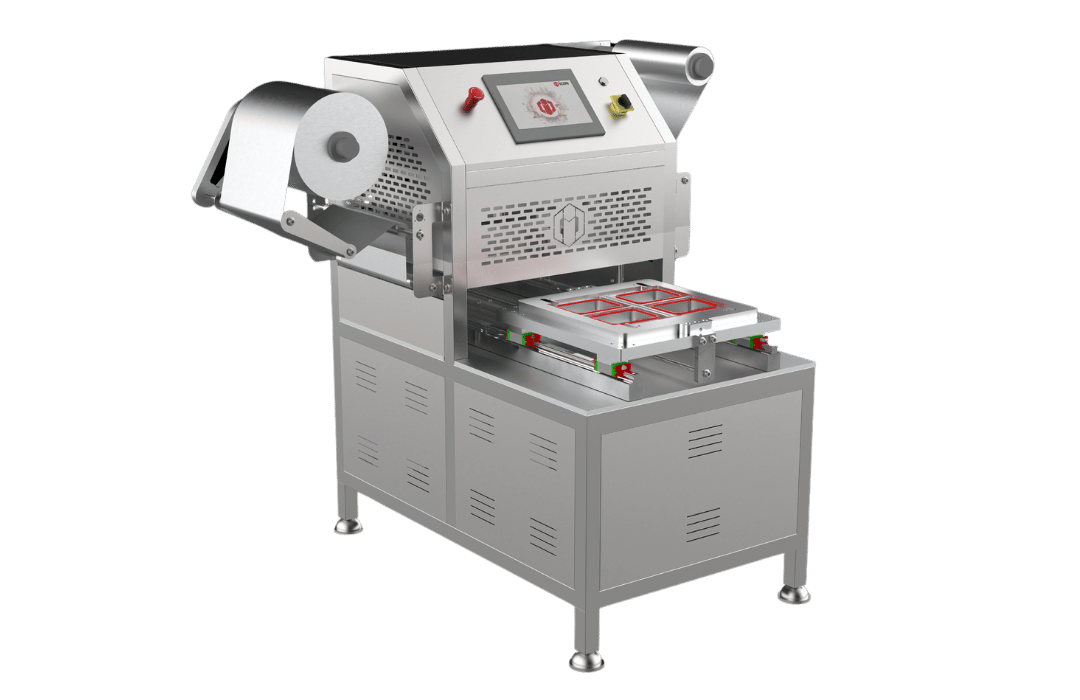

Linear Tray Sealer (MAP)
Hygienic & Safe Design
Secured Sealing
MAP Tray Sealing
Designed for Start ups

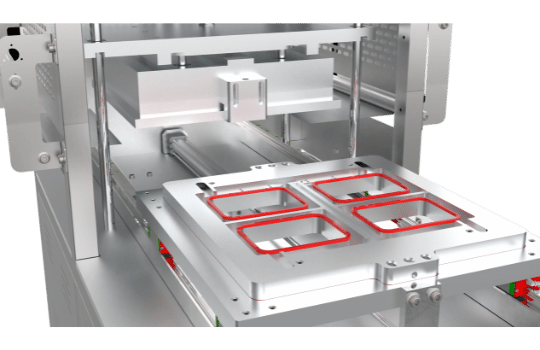

Linear table Movement
Space Saving Design
Vaccum + MAP
Types of packages
Gas Flushing
Premium Sealing

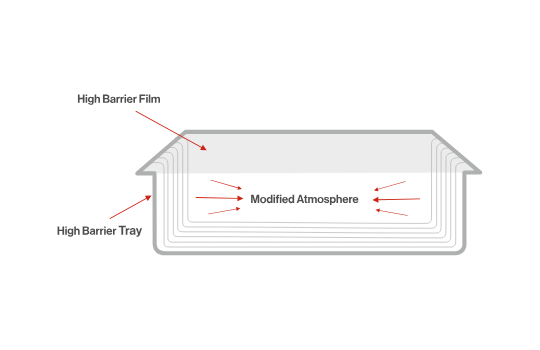

Modified Atmospheric Packaging
Skin
Products that can be packed
Dates
Sweet
Namkeen & Farsan
Ready & Cooked Meals
Bakery
Meat & Poultry
.png)
Sea Food
.png)
Fruits and Vegetable
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
Upto 3 to 4 Cycles per Minute (Depend on Product) |
|
| Production Output |
720 to 960 Trays per Hour (for 200 Grams or 250 Grams) |
|
| Products |
Meats, Sweets & Savories, Bakery |
|
Machine Specification |
||
| Type | Top Sealing | |
| Application | MAP, Sealing, Skin | |
| Upper Film | Printed / Plain, Easy Peel, Retortable | |
| Tray Material | High Barrier Rigid (Pre-Formed) | |
| Tray Shape and Size | Customized | |
| Vacuum Pump |
Busch / Becker |
|
| Mold Matrix |
Depend on the Tray Size |
|
| Packet Weight Variants | 100, 200, 400, 500, and 1000 Grams, etc. (Can be customized) | |
| Feeding System | Manual Placement of the Tray in the Feeding Area | |
Electrical Specification |
||

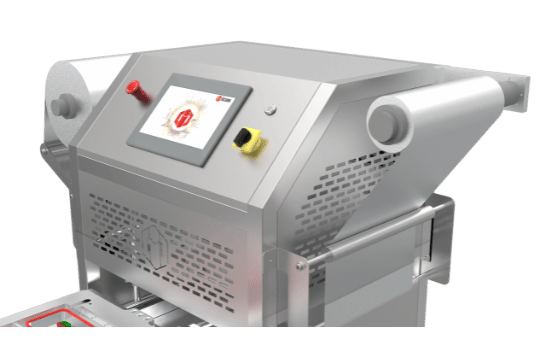

| Control & Command System | PLC & HMI 7" (Touch Screen) (Fuji) | |
| Total Installed Power | 5 KW | |
| Electrical Voltage | 440 V AC (3-Phase) | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Components | SMC or Festo | |
Machine Structure |
||
| Machine Construction | Stainless Steel 304 & Aluminum Assemblies | |
|
Machine Length |
~ 1260 mm |
|
|
Machine Width |
~ 902 mm |
|
|
Machine Height |
~ 1428 mm |
|
|
Machine Weight |
~ 240 Kg. |
|
Required Accessories |
||
|
Air Compressor |
3 H.P. |
|
|
Air Dryer |
20 CFM |
|
|
Printer |
Inkjet Printer with Conveyor |
