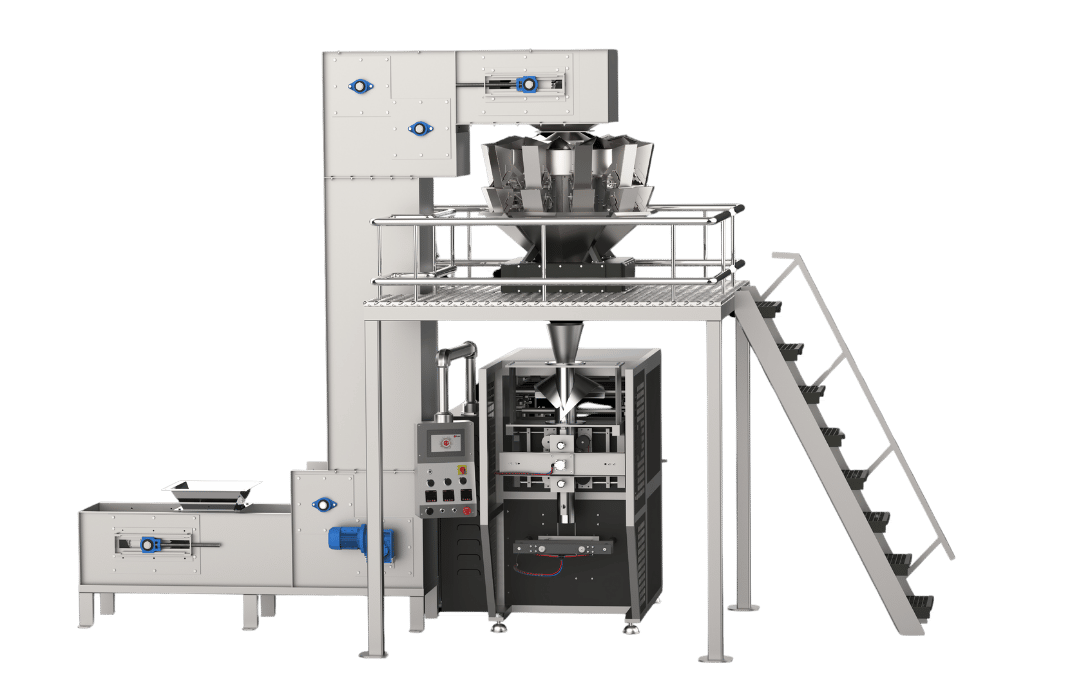

Multihead VFFS Pro
Hygienic & Safe Design
Consistent Quality
International Standards
Pneumatic Operations
Secured Sealing
High Production Output
Types of packages
Gas Flushing
Weighing
Center Seal
Side Seal
3 Side Seal Pouch
Gadget
Zipper Pouch
D Cut
Standy Pouch
Products that can be packed
Paneer & Cheese
Dates
.png)
Free-Flow Powder
Dry Fruits
Namkeen & Farsan
Convenience Foods
.png)
Confectionery
Bakery
Pulses & Produce
.png)
Chips & Flats
.png)
Plastic Granules
.png)
Industrial Items
.png)
Pet Food
.png)
Nut, Bolts & Screws
Technical Specification
Production Capacity |
||
|---|---|---|
| Cycle per Min. |
40 to 45 Weighments / Minute (Depending on The Product Type) |
|
| Weighing Capacity |
10 gm to 5000 gm / Head (Depending on The Product) |
|
| Weighing Accuracy |
±0.1 gm to ±1 gm (Depending on The Load Size and Product) |
|
| Product Types | Granules, Nuts, Seeds, Rice,Chips, Dry Fruits Etc. (Specific Models for Different Materials) | |
Machine Specification |
||
| Model |
IMC 10 |
|
|
Weighting Heads |
10 / 14 Heads |
|
| Operation |
Pneumatic & Electronics |
|
| Filling System |
Weighing Scale |
|
| Film Size |
100 mm to 450 mm (Width) 100 mm to 250 mm (Length) |
|
Electrical Specification |
||
| Control System | PLC & 7 Inch Touch Screen (Fuji) | |
| Power | 220 V AC (1-Phase) | |
| Display | Digital Display With Easy-to-Read Interface | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Cylinder | SMC / Janatics | |
Machine Structure |
||
|
Structure |
M.S. Duly Powder Coated |
|
|
Contact Part |
Stainless Steel |
|
|
Machine Length |
~ 189 Inch |
|
|
Machine Width |
~ 77 Inch | |
|
Machine Hight |
~ 138 Inch | |
|
Machine Weight |
~ 1500 kg. | |
Optional Features |
||
| Printer | High-Quality, Durable Printing Of Variable Batch Coding And Barcodes On Flexible Packaging Printing | |
| Nitrogen Flushing | Remove Oxygen From The Packaging, Preserving Product Freshness and Extending Shelf Life | |
| Vacuum | Removes Air From The Packaging, To Enhance Product Preservation and Prevent Spoilage | |
Required Accessories |
|
|
|
Air Compressor |
5 H.P. | |
|
Stabilizer |
3 KVA |
Related Products

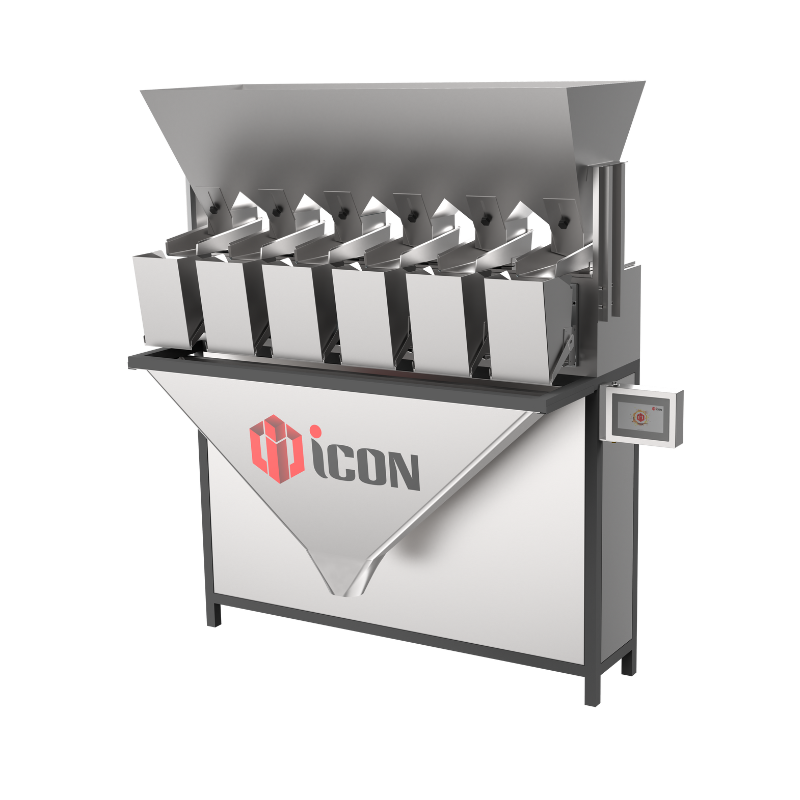

Four Head Weigher
View Details

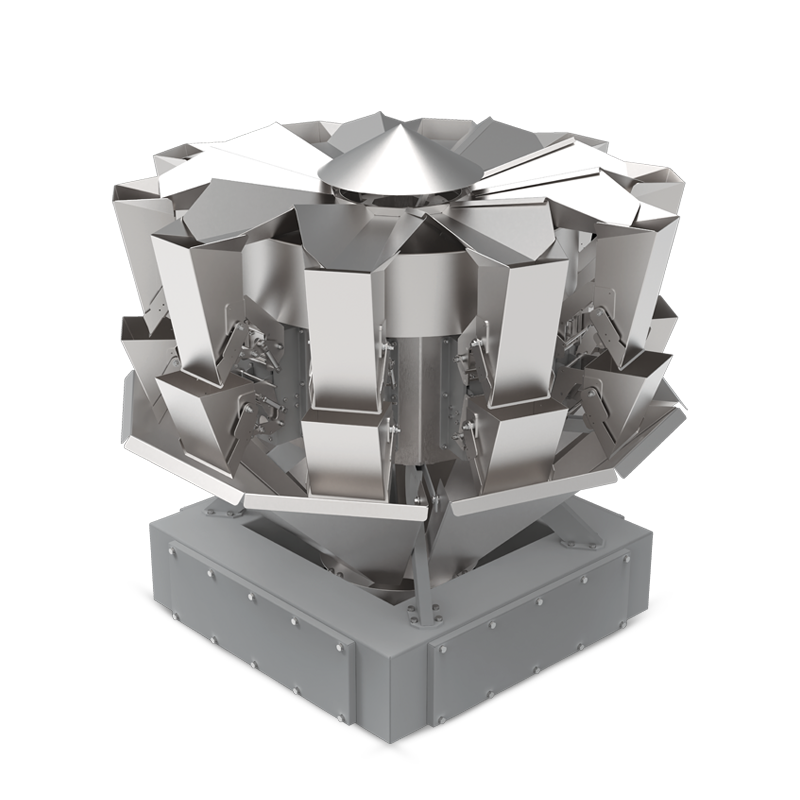

Multihead Weigher
View Details

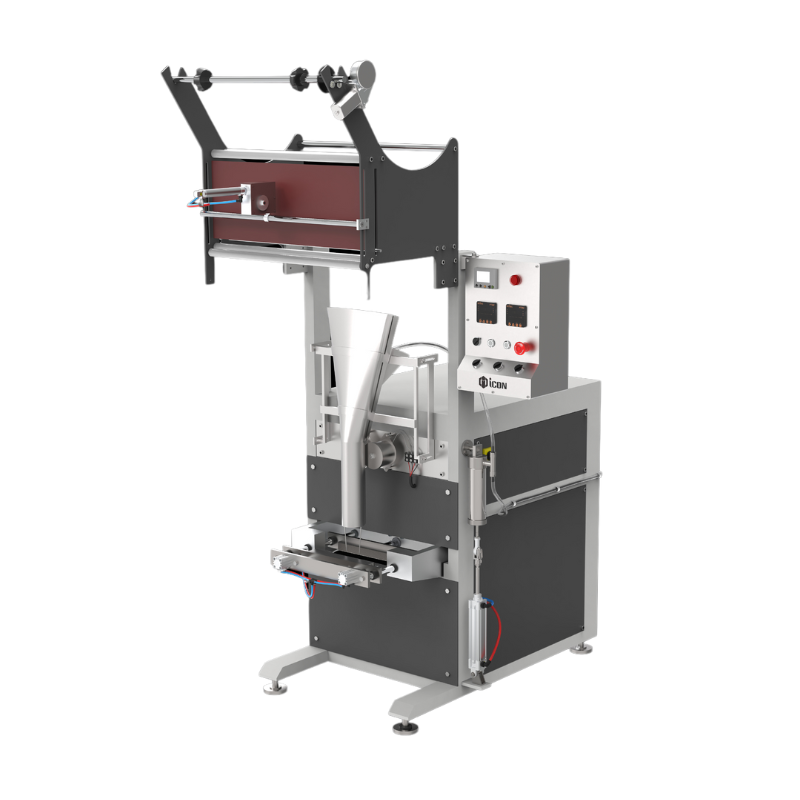

Cup Filler VFFS Mini
