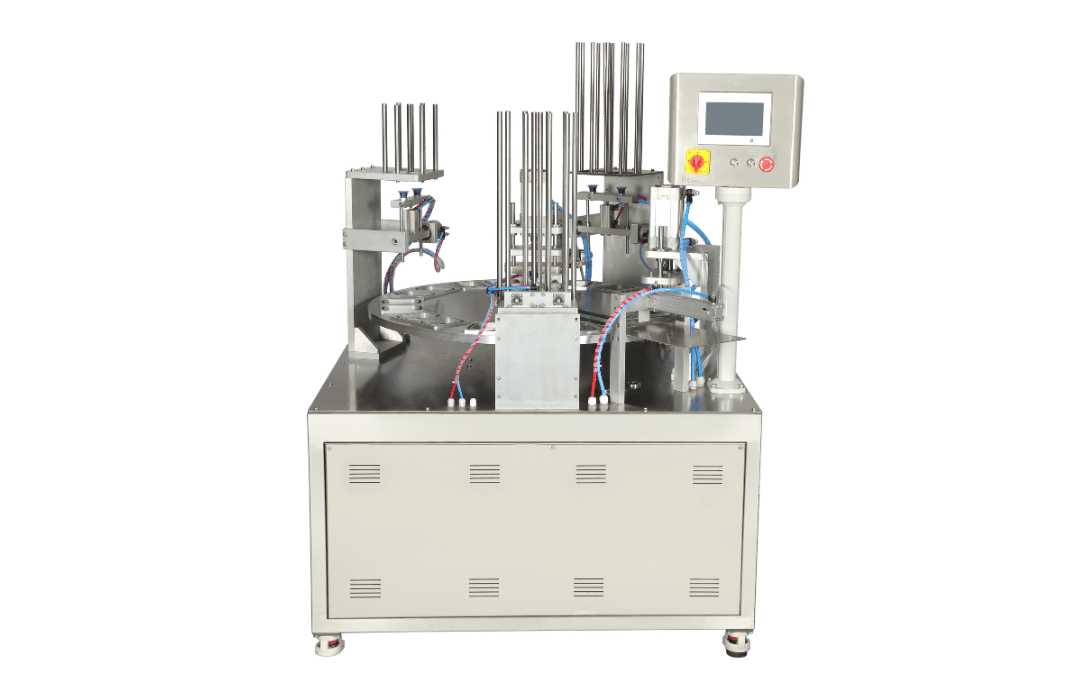

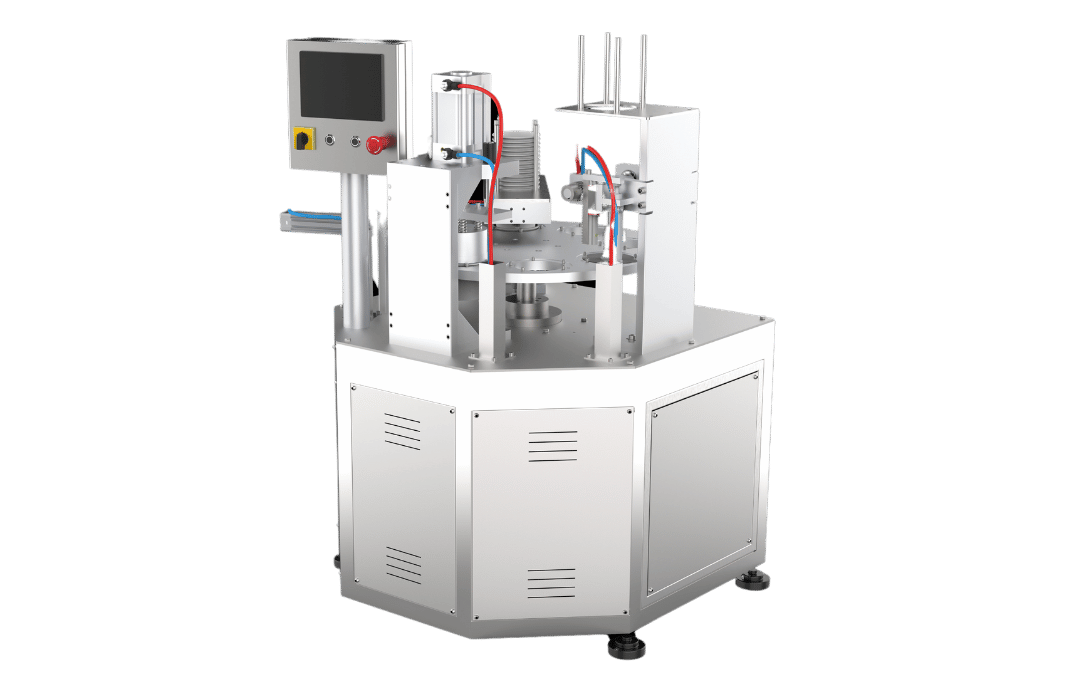

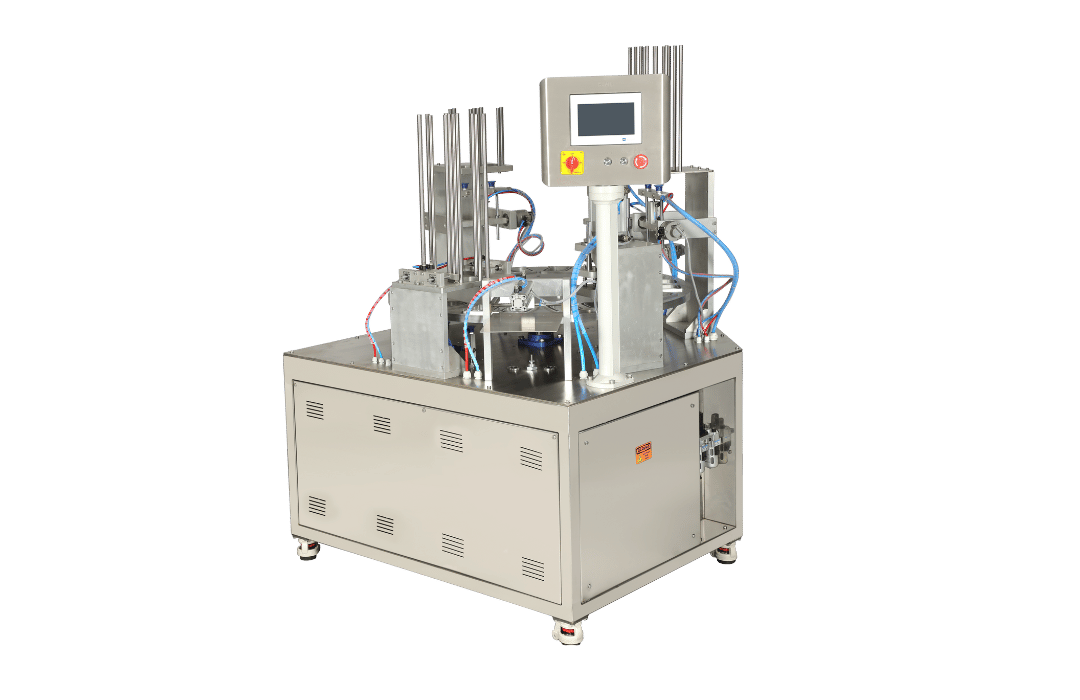

Rotary Cup Filling Sealing Machine
Secured Sealing
Suitable for Various Cup Sizes
Accurate Filling
Adjustable Filling Volumes
Intuitive Interface
Smart Design
Types of packages

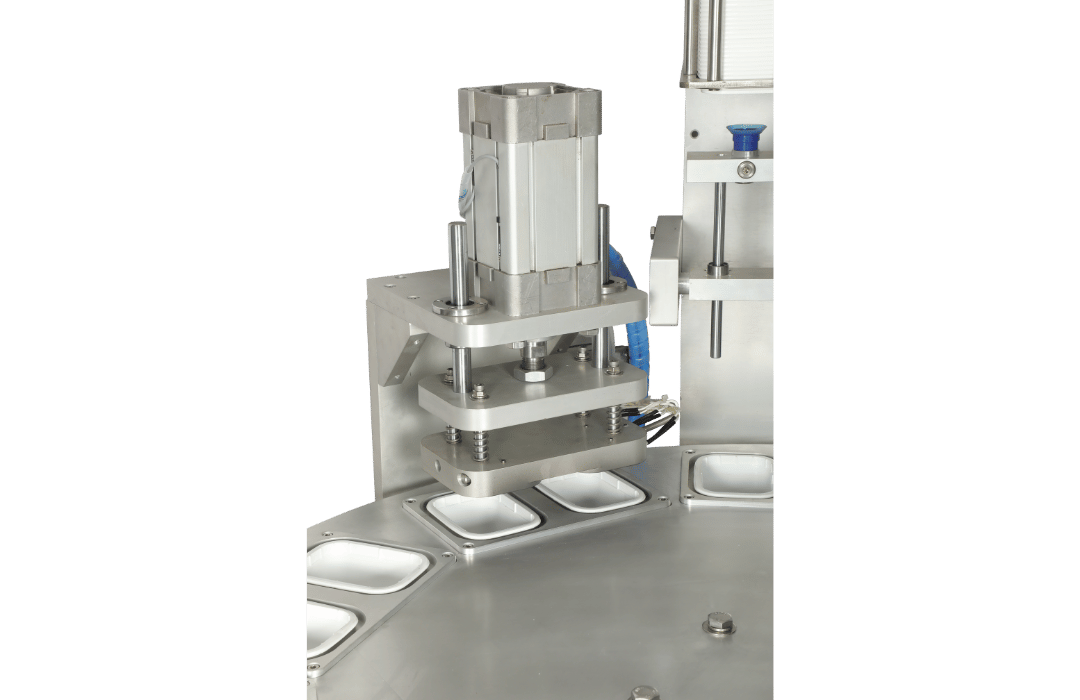

Premium Sealing
Filling
Products that can be packed
Curd
.png)
Fluids
Lassi
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
Upto 600 to 2400 Cups per Hour (Depend on Product) |
|
| Suitable Filling Volume |
50 gm to 500 gm (Depend on Product) |
|
| Product to be Filled |
Curd, Juice, Paste, Cheese Spread, Cream, Butter, Jelly, Jam, Yogurt, Cheese, Margarine, Water, Etc. |
|
Machine Specification |
||
| Filler System |
Gravity Filling System, Gear Pump (Servo Based) |
|
| No. of Station |
8 (Can be Varied) |
|
| Type |
Cup Filling & Sealing |
|
| Upper Film |
Roll or Foil |
|
| Cup Material |
High Barrier Rigid (Pre-Formed) |
|
| Cup Shape and Size |
Customized |
|
Electrical Specification |
||
| Control & Command System | PLC & HMI 7" (Touch Screen) (Fuji) | |
| Total Installed Power | 4 KW | |
| Electrical Voltage | 220 V, (1-Phase) | |
| Actuator | Servo Motor | |
Pneumatic Specification |
|
|
|
Air Pressure |
6 to 7 Bar |
|
|
Pneumatic Components |
SMC or Festo |
|
Machine Structure |
||
|
Machine Construction |
Stainless Steel 304 & Aluminum Assemblies | |
|
Machine Length |
~ 1124 mm |
|
|
Machine Width |
~ 1040 mm | |
| Machine Height | ~ 1400 mm | |
Required Accessories |
||
| Air Compressor | 5 H.P. | |
| Air Dryer | 20 CFM | |
| Printer | Inkjet Printer with Conveyor |
