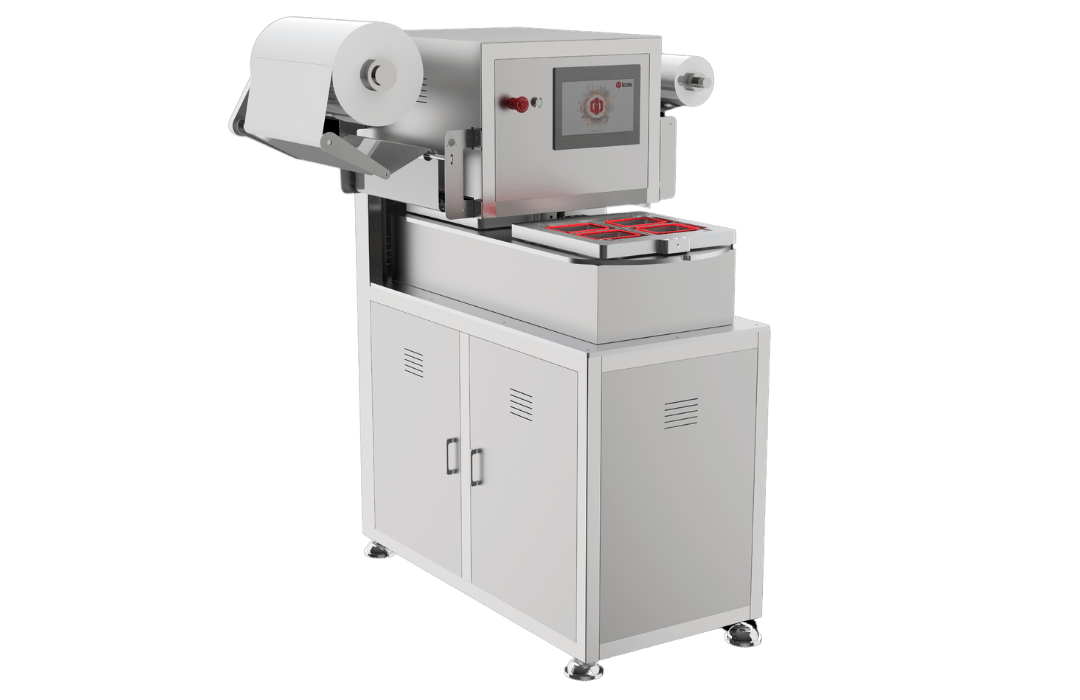

Rotary Tray Sealer (MAP)
Hygienic & Safe Design
Secured Sealing

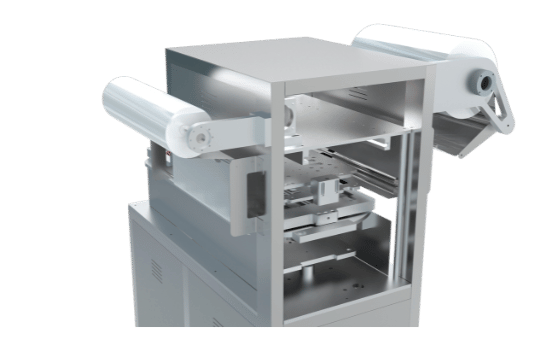

Advanced Gas Flushing

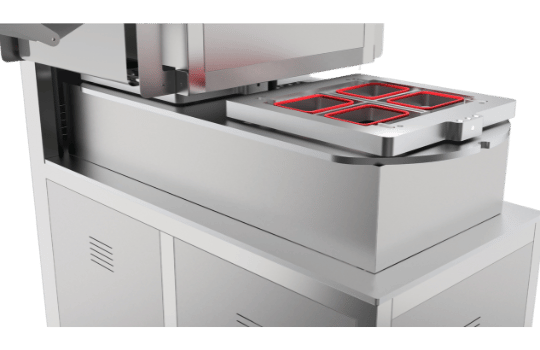

Rotary Table Movement
Optimal Speed Packaging
MAP Tray Sealing
Types of packages
Gas Flushing
Premium Sealing

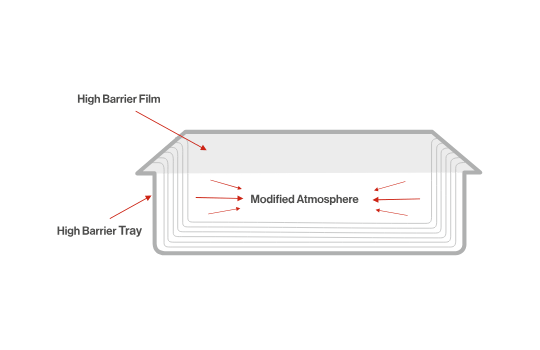

Modified Atmospheric Packaging
Skin
Products that can be packed
Dates
Sweet
Namkeen & Farsan
Ready & Cooked Meals
Bakery
Meat & Poultry
.png)
Sea Food
.png)
Fruits and Vegetable
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
Upto 3 to 4 Cycles per Minute (Depend on Product) |
|
| Production Output |
720 to 960 Trays per Hour (for 200 Grams or 250 Grams) |
|
| Products | Meats, Sweets & Savories, Bakery | |
Machine Specification |
||
| Type | Top Sealing | |
| Application | MAP, Sealing, Skin | |
| Upper Film | Printed / Plain, Easy Peel, Retortable | |
| Tray Material | High Barrier Rigid (Pre-Formed) | |
| Tray Shape And Size | Customized | |
| Vacuum Pump | Busch / Becker | |
| Mold Matrix |
Depend on the Tray Size |
|
| Packet Weight Variants | 100, 200, 400, 500, and 1000 Grams, etc. (Can be customized) | |
| Feeding System | Manual Placement of the Tray in the Feeding Area | |
Electrical Specification |
||
| Control & Command System | PLC & HMI 7" (Touch Screen) (Fuji Make) | |
| Total Installed Power | 4 KW | |
| Electrical Voltage | 440V AC (3-Phase) | |
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Components | SMC or Festo | |
Machine Structure |
||
|
Machine Construction |
Stainless Steel 304 & Aluminum Assemblies |
|
|
Machine Length |
~ 1140 mm |
|
|
Machine Width |
~ 1152 mm |
|
|
Machine Height |
~ 1550 mm |
|
|
Machine Weight |
~ 300 Kg. |
|
Required Accessories |
||
| Air Compressor | 3 H.P. | |
| Air Dryer | 20 CFM | |
| Printer | Inkjet Printer with Conveyor |
