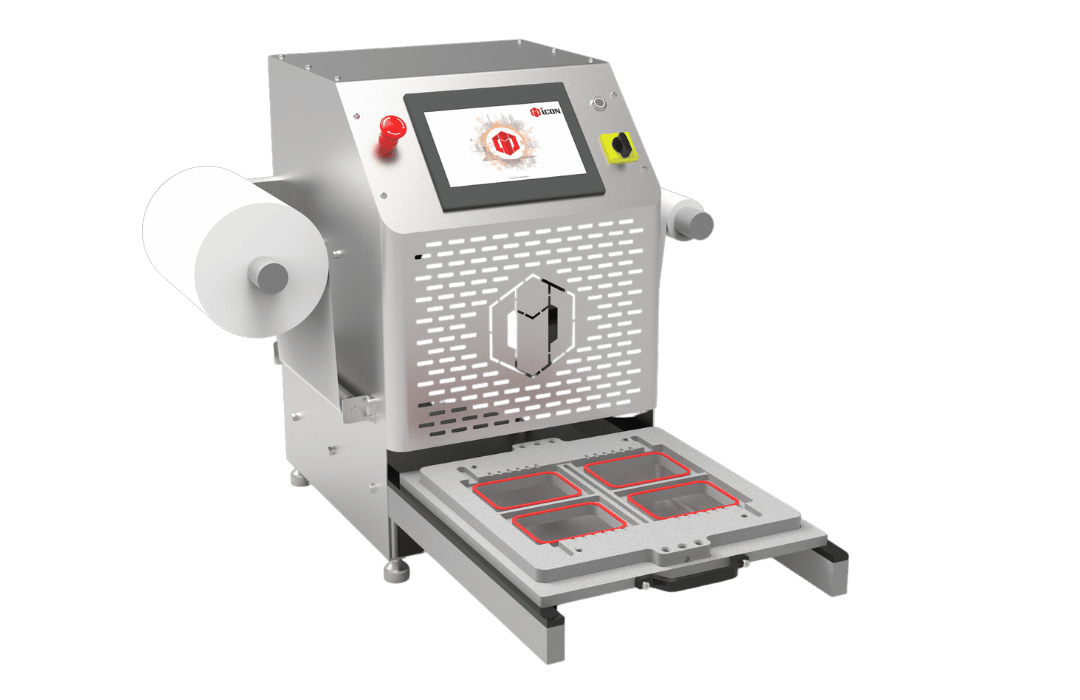

Table Top Tray Sealer

Download Sheet
Hygienic & Safe Design
Consistent Quality
International Standards
Secured Sealing
Advanced Gas Flushing
Extended Shelf-Life
Vaccum + MAP
Handy Equipment

Types of packages

Gas Flushing
Premium Sealing

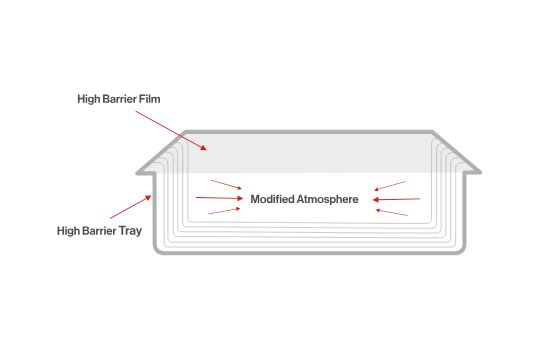

Modified Atmospheric Packaging
Skin

Products that can be packed

Dates
Sweet
Namkeen & Farsan
Ready & Cooked Meals
Bakery
Meat & Poultry
Sea Food
Fruits and Vegetable

Technical Specification

Production Capacity


Production Capacity

Upto 2 to 3 Cycles per Minute (Depend on Product)
Production Output

480 to 720 Trays per Hour (for 200 Grams or 250 Grams)
Products

Meats, Sweets & Savories, Bakery


Machine Specification


Type   Top Sealing
Application   MAP, Sealing, Skin
Upper Film   Printed / Plain, Easy Peel, Retortable
Tray Material   High Barrier Rigid (Pre-Formed)
Tray Shape and Size   Customized
Vacuum Pump   Busch / Becker
Mold Matrix

Depend on the Tray Size
Packet Weight Variants   100, 200, 400, 500, and 1000 Grams, etc. (Can be customized)
 Feeding System   Manual Placement of the Tray in the Feeding Area


Electrical Specification


Control & Command System

PLC & HMI 7" (Touch Screen) (Fuji)
Total Installed Power   4 KW
Electrical Voltage   440 V AC (3-Phase)


Pneumatic Specification


Air Pressure   6 to 7 Bar
Pneumatic Components   SMC or Festo


Machine Structure


Machine Construction

Stainless Steel 304 & Aluminum Assemblies

Machine Length



~ 859 mm

Machine Width



~ 1024 mm

Machine Height

   ~ 742 mm
Machine Weight   ~ 150 Kg.


Required Accessories


Air Compressor   3 H.P.
Air Dryer   20 CFM
Online Printer   Inkjet Printer with Conveyor
