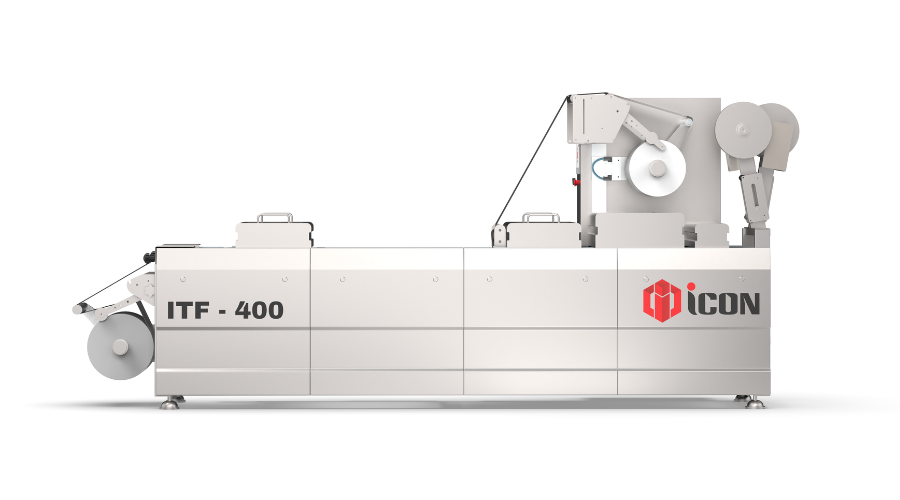

Thermoforming Vacuum Packing Machine (ITF - 400)
Consistent Quality
Secured Sealing
Extended Shelf-Life
IP65 Standards
Vaccum + MAP
Customizable Packaging
Types of packages
Products that can be packed
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Technical Specification
Production Capacity |
||
|---|---|---|
| Production Capacity |
Upto 6 to 8 Cycles per Min. (Depend on Product) |
|
| Production Output |
350 to 400 Kg./Hr. (200 gm to 250 gm) |
|
Machine Specification |
||
| Type |
Form – Fill – Seal |
|
| Application |
MAP, Vacuum, Sealing |
|
| Upper Film Width |
320 to 352 mm (Can be customized) |
|
| Bottom Film Width |
323 to 353 mm (Can be customized) |
|
|
Bottom Film |
High Barrier EVOH |
|
|
Bottom Film Thickness |
Upto 500 Micron |
|
|
Filling Area |
1200 mm (Can be customized) |
|
|
Filling Type |
Automated or Manual Filling (Depending on Design) |
|
|
Mold Matrix |
Depend on the Mold Size |
|
|
Forming Depth |
Upto 60 mm (Can be customized) |
|
|
Packet Weight Variants |
100, 200, 400, 500, and 1000 Grams, etc. (Can be customized) | |
| Vacuum Pump | Rotary Vane or Dry Vacuum Pump (Busch or Becker) | |
| Vacuum Pump Capacity | 150 to 350 m³/h (Based on Production Volume) | |
| Cooling Water | Normal Water | |
Electrical Specification |
||
|
Control & Command System |
HMI 10” (Siemens or Fuji) | |
|
Feeding System |
Servo Motor (Siemens or Fuji) | |
|
Total Installed Power |
7 KW (Thermoforming Machine) 5 KW (Air Compressor (7.5 H.P.) 1 KW (Chiller) 1 KW (Stabilizer & Air Dryer) |
|
Pneumatic Specification |
||
| Air Pressure | 6 to 7 Bar | |
| Pneumatic Components | SMC or Festo | |
Machine Structure |
||
|
Machine Construction |
Stainless Steel 304 & Aluminum Assemblies | |
|
Machine Length |
~ 3653 mm | |
| Machine Width |
~ 958 mm |
|
|
Machine Height |
~ 1700 mm | |
| Machine Weight |
~ 880 Kg. |
|
Required Application |
||
| Chiller |
1.5 TR |
|
| Stabilizer |
10 KVA |
|
| Air Compressor |
7.5 H.P. |
|
| Air Dryer |
40 CFM |
|
| Online Printer |
TTO Printer with Bracket. (Videojet, Markem-Imaje) |
Related Products

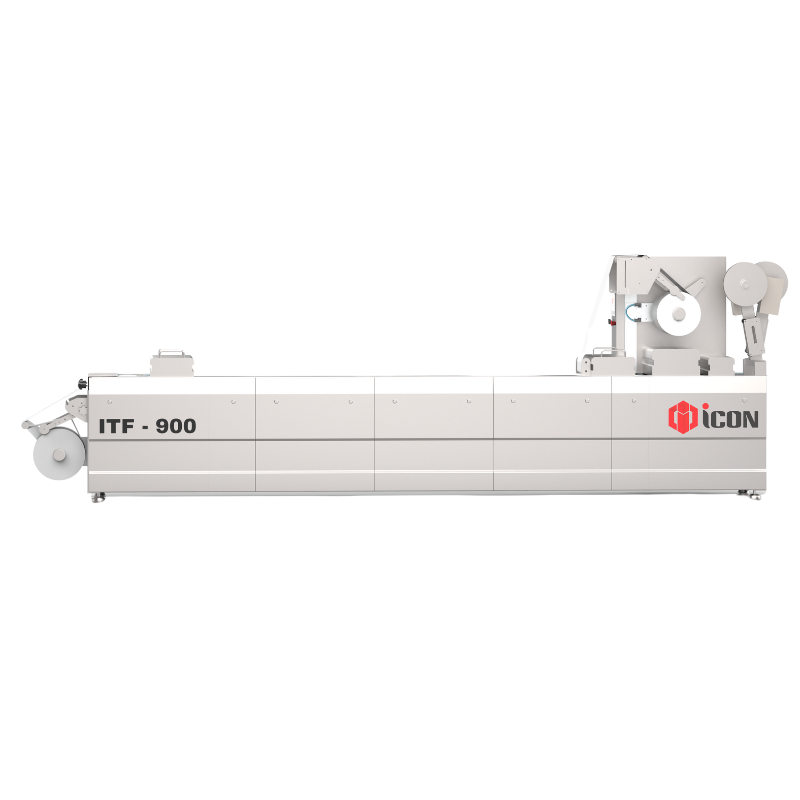

Thermoforming Vacuum Packing Machine (ITF - 900)
